Toshiba Satellite L455D-S5976 WIfi Card Replacement

Geschrieben von: NateJohnson
  • Kommentare: 3
Toshiba Satellite L455D-S5976 WIfi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

The wifi card enables the computer to be compatible with wifi. If the card is malfunctioning, the computer will not receive a signal from any wifi sources. This guide shows how to remove the wifi card so it can be replaced.

  1. 2AmMLOZ1tbctugcO

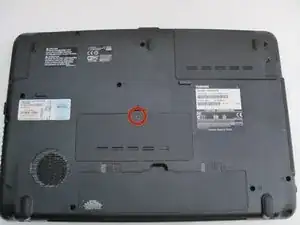

    • Unscrew the Phillips #1 4mm screw from the middle panel using a Phillips #1 screwdriver.

  2. dPMNFRncTQAPUrMS

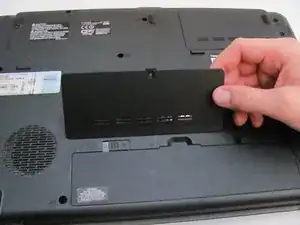

    • Remove the middle panel by lifting up and out.

  3. tvqPwuExIvZb2FJ1

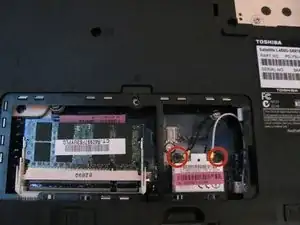

    • Remove the two Phillips #1 6mm screws from the wifi card using a Phillips #1 screwdriver.

    Add markers indicating where the screws are.

    Atlanta Nguyen -

  4. fN1XooTWmlLP3UFj

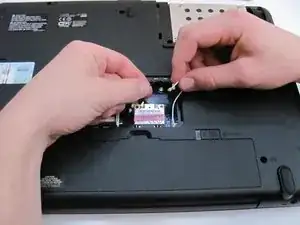

    • Unsnap the two cables from the wifi card.

    Add markers indicating where cables are.

    Atlanta Nguyen -

  5. TknK1pEa5Rsh4aSE

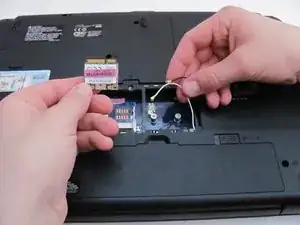

    • Remove the wifi card using your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
