This guide shows how to remove and replace the lithium-ion battery for the Toshiba L55 laptop. If your battery is swollen, take appropriate precautions.
Ersatzteile
-
-

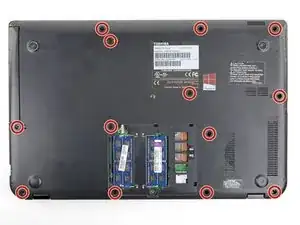

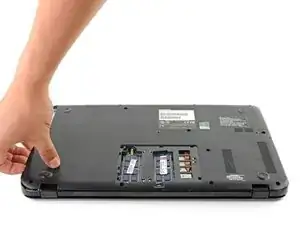

Flip the laptop over so that the back cover is facing up.
-

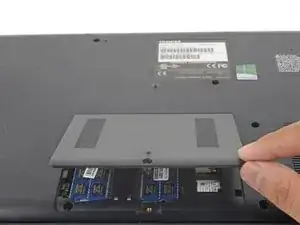

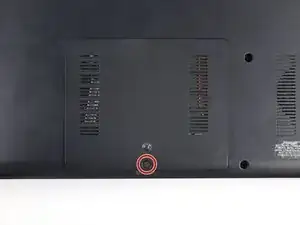

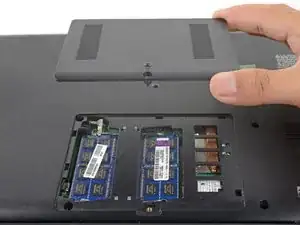

Unscrew the captive Phillips screw securing the RAM cover.
-
-
-

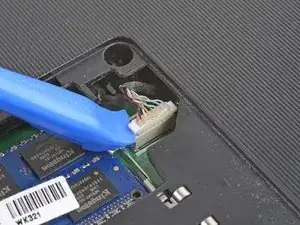

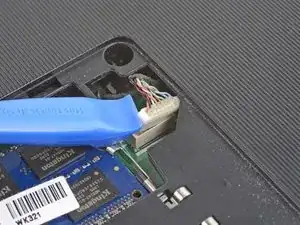

Use an opening tool to pry up the ethernet connector cable from its socket near the RAM module.
-
Disconnect the cable.
-
-
-

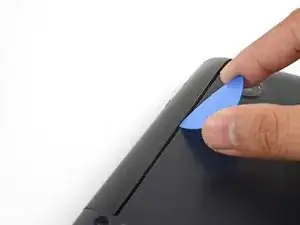

Insert the point of an opening pick in the seam between the SuperMultiDrive and the rest of the back cover.
-

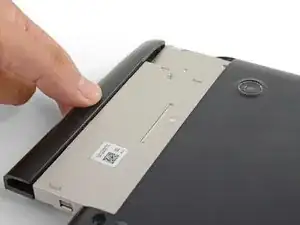

Push the SuperMultiDrive's lip away from the back cover to disconnect the drive.
-
Slide the drive out of the bay and remove it from the laptop.
-
-
-

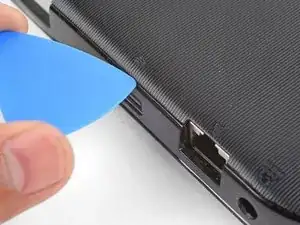

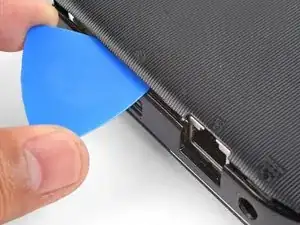

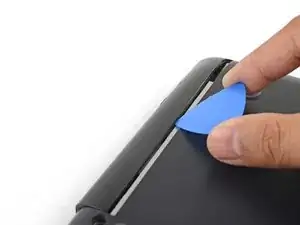

Insert the point of an opening pick into the back cover seam near the ethernet port.
-
Twist the pick to release the plastic clips along the edge.
-
-
-

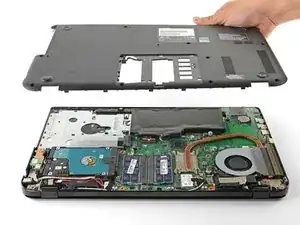

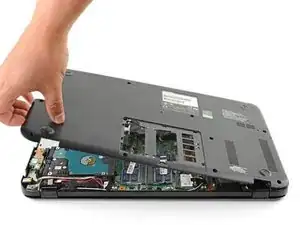

Grasp the loosened back case edge with your hand and lift it slowly away from the laptop. The remaining clips should release with ease.
-
Remove the back cover.
-
-
-

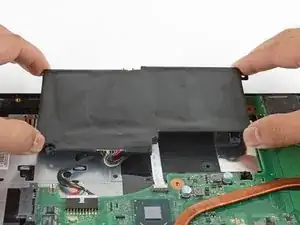

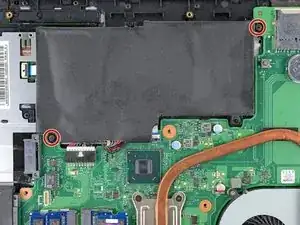

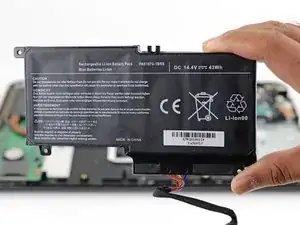

Lift the battery out of its recess and move it slightly away from the motherboard in order to reveal the battery cable.
-
-
-

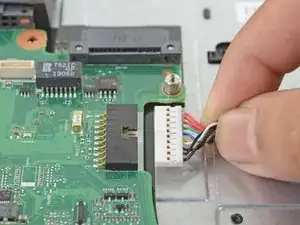

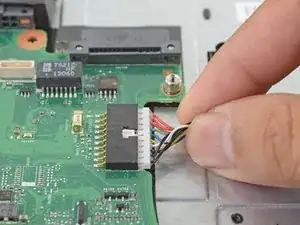

Grasp the battery cable near its motherboard socket and pull the connector horizontally out of the socket.
-
To reassemble your device, follow these instructions in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
For optimal performance, calibrate your newly installed battery: Charge it to 100% and keep charging it for at least 2 more hours. Then use your device until it shuts off due to low battery. Finally, charge it uninterrupted to 100%.
