Toshiba Satellite L55-A CMOS Battery Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Toshiba Satellite L55-A CMOS Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide shows how to remove and replace the CMOS battery for the Toshiba L55 laptop. The battery is a standard CR2032 lithium coin cell.

  1. GkHsHhZuhlLvuoiF

    • Before you begin, be sure to power down your laptop.

    • Flip the laptop over so that the back cover is facing up.

    • Unscrew the captive Phillips screw securing the RAM cover.

  2. NZIjXWNgUBOyS653
    NZIjXWNgUBOyS653
    aIharJKMZFAQNUEA

    • Lift up the edge of the RAM cover and remove it.

  3. cmc3jyqAxqpm3McF
    cmc3jyqAxqpm3McF
    jr3GN1dhUOJALPIg
    FVGPWqUB25XDEFuU

    • Use an opening tool to pry up the ethernet connector cable from its socket near the RAM module.

    • Disconnect the cable.

    • During reassembly, make sure you re-insert this connector right-side-up. The connector is keyed to plug in only one orientation, so if it doesn't slide into place easily, turn it around and try the other way.

  4. jTa4SbGremKkSaeu

    • Remove the thirteen 6.8 mm long Phillips screws securing the back cover.

  5. TtSNaVlQgkBRRZEV
    TtSNaVlQgkBRRZEV
    fB2JoGFGkPdTLtZj
    LpsJYlEINGvcNYa2

    • Insert the point of an opening pick in the seam between the SuperMultiDrive and the rest of the back cover.

    • Push the SuperMultiDrive's lip away from the back cover to disconnect the drive.

    • Slide the drive out of the bay and remove it from the laptop.

  6. DX5CQGXCgEgTGPhA
    DX5CQGXCgEgTGPhA
    3lAEMqYBbfWEQaMR

    • The back cover is still held in place by plastic clips.

    • Insert the point of an opening pick into the back cover seam near the ethernet port.

    • Twist the pick to release the plastic clips along the edge.

  7. 3yaXgCRCOxKKVRGl
    3yaXgCRCOxKKVRGl
    YaUDIUWksbjXD2fy
    cVodCvhUCcGNa6yD

    • Grasp the loosened back case edge with your hand and lift it slowly away from the laptop. The remaining clips should release with ease.

    • If you meet significant resistance, stop and check for forgotten screws.

    • Remove the back cover.

    • To reinstall the back cover, align the cover and press along the edges to snap the clips back in place.

  8. btlrGIVxayPSmH4d
    btlrGIVxayPSmH4d
    nqKetREvTcoafGYZ
    tTkGSX1FyoPa4plM

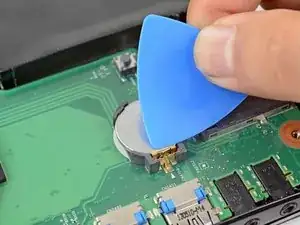

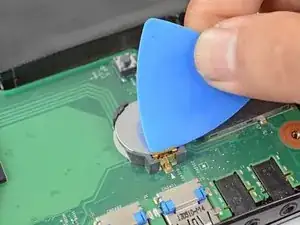

    • Use your fingernail or an opening pick to push the gold metal clip off of the top of the coin cell.

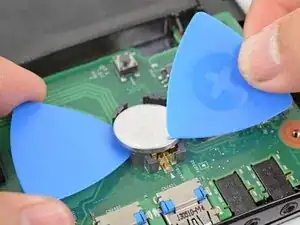

    • Pry the coin cell out of its holder and remove it.

    • To install a replacement battery, align the battery and press it firmly into the holder until the battery snaps into position.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.
