Toshiba Satellite L55t-B5271 Cooling Fan Replacement with Heat Sink

Geschrieben von: Noelle Dulude
  • Kommentare: 0
Toshiba Satellite L55t-B5271 Cooling Fan Replacement with Heat Sink

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will help in the replacement of a broken cooling fan with heat sink in your laptop. The purpose of the fan is to pull cool air in to prevent overheating in the laptop. To fix this broken part, this guide will instruct you how to replace the cooling fan by removing the lower cover to access it.

  1. 1BFfNXAtPKFBJmqt
    1BFfNXAtPKFBJmqt
    B1PUNPA4McvEHiVy
    hDiN52dVVruo6sZM

    • Make sure you turn the laptop off first.

    • Close the laptop lid and flip it over so that Toshiba logo is facing down.

  2. EiZBkC14YutbeY6k
    EiZBkC14YutbeY6k
    PekJaZAiuDvEvg4M

    • Remove the two 6.5 mm Phillips head screws indicated using a Phillips #00 screw driver.

  3. skdvSognqLBe5eEy
    skdvSognqLBe5eEy
    65xWCmJvsfucGIQU
    JZThWWiEdMZKcWGG

    • Once the screws are removed, slide the battery pack out of the computer.

  4. dt5CRUPBgweFbOPY
    dt5CRUPBgweFbOPY
    1LfJSvja61bJgfNY
    WhDKjcCA1WyYJBjG

    • Remove all 6.5 mm Philips head screws on the back cover of the laptop with a Philips #00 screwdriver.

    • Use the plastic opening tool to remove the back cover from the laptop.

    • Be aware that static discharge can cause damage to sensitive electrical components within the computer. To avoid this you can wear an anti-static wrist strap.

  5. BPt5HKkX1rfVWPLY
    BPt5HKkX1rfVWPLY

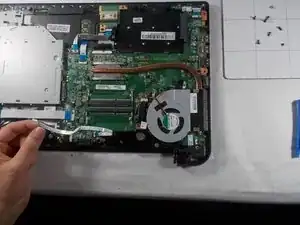

    b5HxDTfdWPMH1LxF

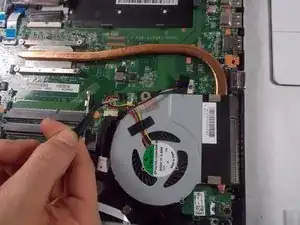

    lpL4BRr6xfdrDuSX

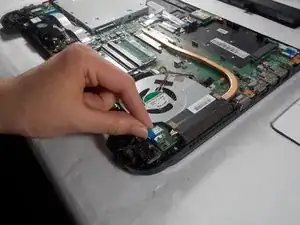

    • The ribbon and wire must be moved out of the way of the fan.

    • Using a black tweezer tool, lift the tab holding the ribbon in place and then gently pull it out.

    • Using the same tweezer tool, again lift the tab holding the wires in place and gently pull them out.

  6. Xsy3LiNiFj1bAomZ
    Xsy3LiNiFj1bAomZ
    RImWOFoLRssNJFLv

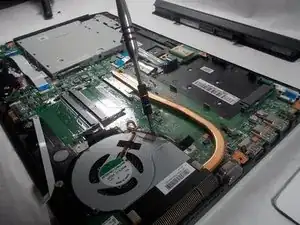

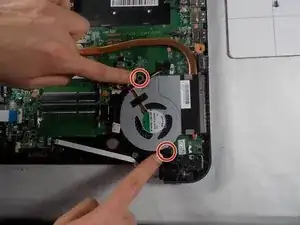

    • Unscrew the two 3mm Phillips head screws on each fan using the Phillips #00 screwdriver.

  7. XrDuJPS5LZa4AQ2u
    XrDuJPS5LZa4AQ2u
    4AVhKUJemgxvciZT

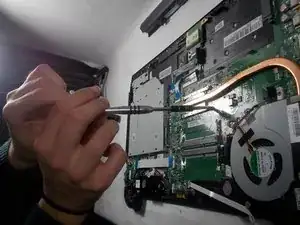

    eJQmCj5gONMOEI3U

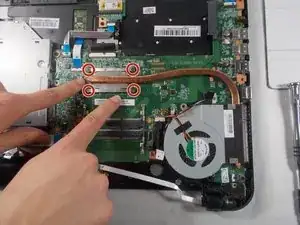

    • Unscrew the four, 3mm Phillips head screws holding the last piece to the laptop using a Phillips #00 screwdriver.

    • Gently pull the cooling fan with heat sink off the laptop and set aside.

Abschluss

To reassemble your device, follow these instructions in reverse order.
