Toshiba Satellite L655D-S5095 DC Jack Replacement

Geschrieben von: Joseph Sctbunio
  • Kommentare: 2
Toshiba Satellite L655D-S5095 DC Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

Keine Schätzung

Einleitung

Outline what you are going to teach someone how to do.

  1. yrLZnkn5BPKTpycn
    yrLZnkn5BPKTpycn
    sDHDd11relPDPS5x
    rGQRHCxLJ6IUMmNK

    • Locate the battery locks on the bottom of the laptop.

    • Slide the right lock outwards, until it locks into place.

    • Slide and hold the left lock outwards and hold it in place.

  2. DHGVaiNVgaXhgxPY

    • While holding the lock in place, slide the battery out towards you.

  3. 6XQBEAfhskNLxBtZ

    • Using a #1 Phillips screwdriver, remove the 5.8 mm screw in the battery slot.

  4. SoSQqEqPIBTWfsEI

    • Use a plastic opening tool to pry off the plastic panel above the keyboard.

  5. s6sKpflyjv3An3pC
    s6sKpflyjv3An3pC
    c23BKdbfrhIn2lPB

    • Unscrew the four 3.7 mm screws at the top of the keyboard using a #1 Phillips screwdriver.

  6. 4mdRViglGaHOh5Oc

    • Slowly lift the keyboard out, up and towards the screen.

    • Do not try to remove the keyboard completely because it is still attached to the motherboard.

  7. VYIC6qpJPD54V1pZ

    • Using a plastic opening tool, flip the ZIF connector up to release the ribbon and the keyboard.

  8. OXXNPkrH2WLjeYMy
    OXXNPkrH2WLjeYMy
    I522GaWBP13nriyJ

    • Unscrew the three 4.6 mm screws holding the panel using a #1 size Phillips head screwdriver. The panel is centered on the bottom of the laptop.

  9. lJDw3B6Niyjj3l2B

    • Remove the cover, firmly lifting from the indent. It is recommended that you leave the screws in the panel.

  10. cLDw4UoGDX2hnB1P
    cLDw4UoGDX2hnB1P
    vHNLTMsbEXUPb1oO
    itU6FCKKWPCgqRKf

    • Push the two tabs outwards, away from the RAM. The RAM should spring up.

  11. sYNtcbTMBN6Ukvp3
    sYNtcbTMBN6Ukvp3
    dE4McFv1EH1acvME
    YntQyDmQuUAXQKio

    • Pull the top RAM stick out gently.

    • Repeat steps 3 and 4 for the bottom RAM stick.

    • When installing the new RAM, line up the notches in the RAM's contacts and insert it at the same angle you removed it.

  12. eNVWFA3oFp6YQfxv

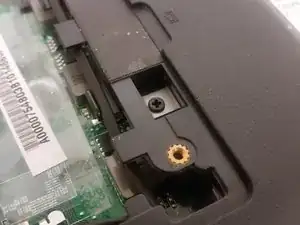

    • Remove the single screw securing the optical drive, and pull the optical drive out.

  13. 5toHWHyytiWWnDva
    5toHWHyytiWWnDva
    51Duh2F1spBTgpfW
    dixCCjR6IWM6ce5k

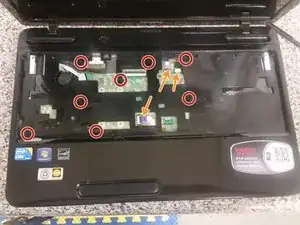

    • Remove the eight M2.5x6.5 screws securing the palmrest to the base.

    • Remove all connectors from their sockets, except for the LCD cable. That one doesn't need to be removed.

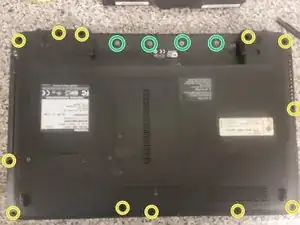

    • Flip the laptop over and remove the twelve M2.5x6.5 screws.

    • Also be sure to remove the four short, big-headed Philips screws from under where the battery was.

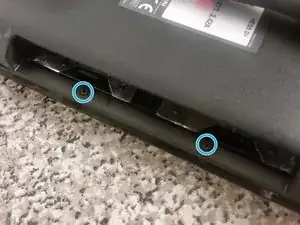

    • Remove the two final screws securing the palmrest to the base, which are where the optical drive's faceplate was.

    • Now use a spudger to separate the palmrest and the base.

    • Now, you can simply flip the laptop standing on its left side, pull the connector out from where the memory cover was, and then yank the jack from the adhesive holding it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
