Einleitung

Replacing the hard drive in your laptop is a beginner level repair, which can easily be executed.

  1. tVprbHC6xmEXgkY2
    tVprbHC6xmEXgkY2
    nweRoGBvdKabmXBV

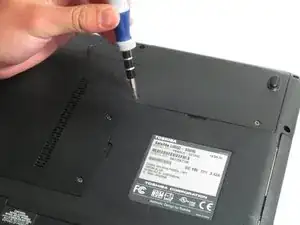

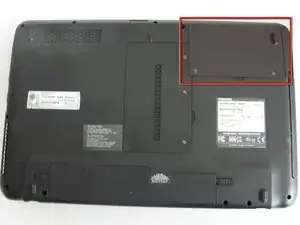

    • Unscrew the two screws holding the panel over the hard drive using a Phillips screwdriver. The panel is located on the top right of the laptop's underside.

  2. rtkgfeYfcFMI5Mya

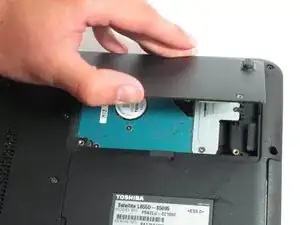

    • Remove the cover, firmly lifting from the indent. It is recommended that you leave the screws in the panel.

  3. bWxRZQMpZ6PaYtIG
    bWxRZQMpZ6PaYtIG
    5MpOYGhOiDbcEXUA

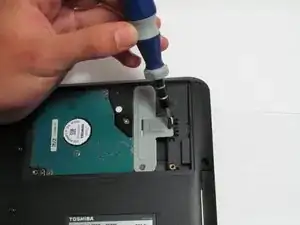

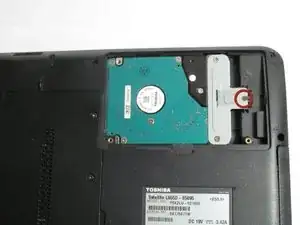

    • Remove the screw located under the plastic tab.

  4. WGR2C2j6cPNtSBj1
    WGR2C2j6cPNtSBj1
    BNJJl5LGUXaISJiZ

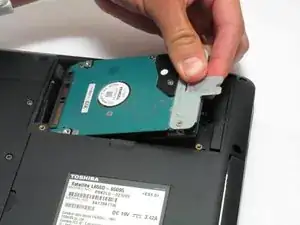

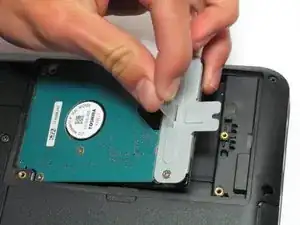

    • Remove the hard drive by pulling the tab upwards and sliding the hard drive out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
