Toshiba Satellite L655D-S5095 Keyboard Replacement

Geschrieben von: Jerry Wakai
  • Kommentare: 2
Toshiba Satellite L655D-S5095 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 7 Minuten

Einleitung

Replacing the keyboard is an intermediate level repair. Following the instructions carefully will help you successfully replace your keyboard.

  1. yrLZnkn5BPKTpycn
    yrLZnkn5BPKTpycn
    sDHDd11relPDPS5x
    rGQRHCxLJ6IUMmNK

    • Locate the battery locks on the bottom of the laptop.

    • Slide the right lock outwards, until it locks into place.

    • Slide and hold the left lock outwards and hold it in place.

  2. DHGVaiNVgaXhgxPY

    • While holding the lock in place, slide the battery out towards you.

  3. 6XQBEAfhskNLxBtZ

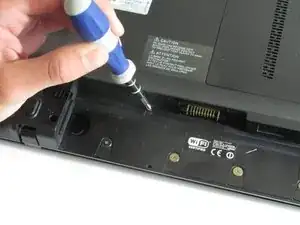

    • Using a #1 Phillips screwdriver, remove the 5.8 mm screw in the battery slot.

  4. SoSQqEqPIBTWfsEI

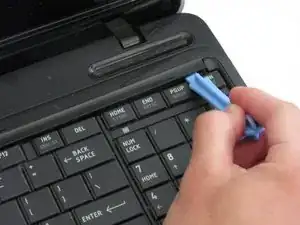

    • Use a plastic opening tool to pry off the plastic panel above the keyboard.

  5. s6sKpflyjv3An3pC
    s6sKpflyjv3An3pC
    c23BKdbfrhIn2lPB

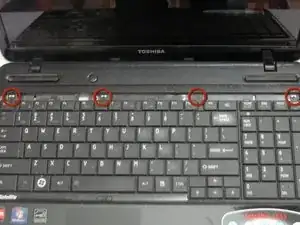

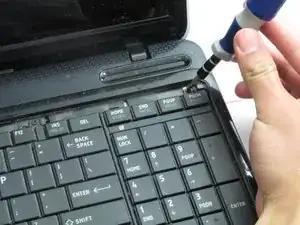

    • Unscrew the four 3.7 mm screws at the top of the keyboard using a #1 Phillips screwdriver.

  6. 4mdRViglGaHOh5Oc

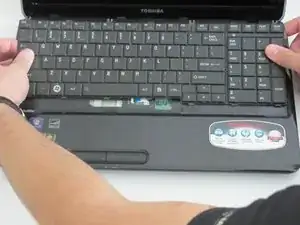

    • Slowly lift the keyboard out, up and towards the screen.

    • Do not try to remove the keyboard completely because it is still attached to the motherboard.

  7. VYIC6qpJPD54V1pZ

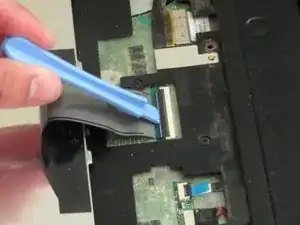

    • Using a plastic opening tool, flip the ZIF connector up to release the ribbon and the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jerry Wakai

Mitglied seit: 01/02/13

377 Reputation

2 Kommentare

Nice little guide. The only thing I can really think to add would be on the last part for those of us who are super-paranoid about breaking something. If you could add a picture of what the ZIF connector looks like after it's opened would help some.

I appreciate the guide, thanks. :)

Christopher Tidwell -

Ditto on all of it. I think I broke my ZIF connector !! Help!! đŸ˜”

salirizz67@gmail.com -
