Toshiba Satellite L655D-S5095 RAM Replacement

Geschrieben von: Jerry Wakai
  • Kommentare: 2
Toshiba Satellite L655D-S5095 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 - 3 Minuten

Einleitung

This guide replaces the RAM in your laptop and is fairly simple to complete.

  1. OXXNPkrH2WLjeYMy
    OXXNPkrH2WLjeYMy
    I522GaWBP13nriyJ

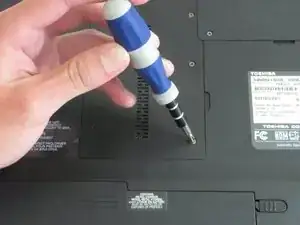

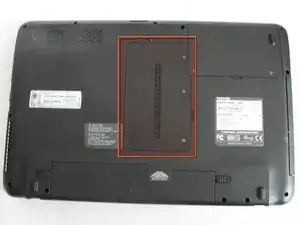

    • Unscrew the three 4.6 mm screws holding the panel using a #1 size Phillips head screwdriver. The panel is centered on the bottom of the laptop.

  2. lJDw3B6Niyjj3l2B

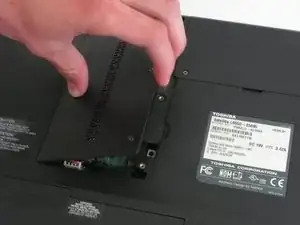

    • Remove the cover, firmly lifting from the indent. It is recommended that you leave the screws in the panel.

  3. cLDw4UoGDX2hnB1P
    cLDw4UoGDX2hnB1P
    vHNLTMsbEXUPb1oO
    itU6FCKKWPCgqRKf

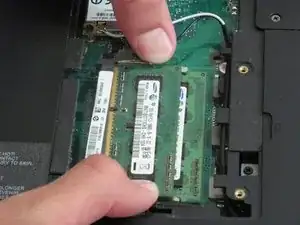

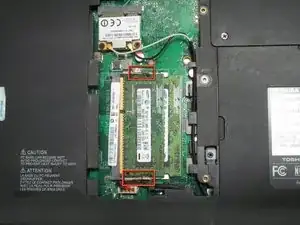

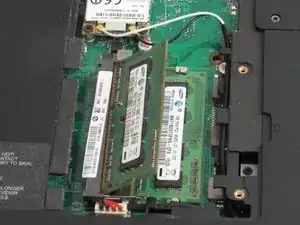

    • Push the two tabs outwards, away from the RAM. The RAM should spring up.

  4. sYNtcbTMBN6Ukvp3
    sYNtcbTMBN6Ukvp3
    dE4McFv1EH1acvME
    YntQyDmQuUAXQKio

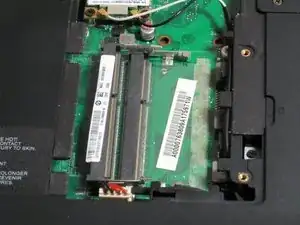

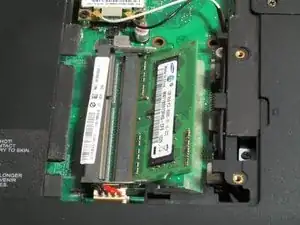

    • Pull the top RAM stick out gently.

    • Repeat steps 3 and 4 for the bottom RAM stick.

    • When installing the new RAM, line up the notches in the RAM's contacts and insert it at the same angle you removed it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
