Einleitung

  1. yrLZnkn5BPKTpycn
    yrLZnkn5BPKTpycn
    sDHDd11relPDPS5x
    rGQRHCxLJ6IUMmNK
    • Locate the battery locks on the bottom of the laptop.

    • Slide the right lock outwards, until it locks into place.

    • Slide and hold the left lock outwards and hold it in place.

  2. DHGVaiNVgaXhgxPY
    • While holding the lock in place, slide the battery out towards you.

  3. 6XQBEAfhskNLxBtZ
    • Using a #1 Phillips screwdriver, remove the 5.8 mm screw in the battery slot.

  4. SoSQqEqPIBTWfsEI
    • Use a plastic opening tool to pry off the plastic panel above the keyboard.

  5. s6sKpflyjv3An3pC
    s6sKpflyjv3An3pC
    c23BKdbfrhIn2lPB
    • Unscrew the four 3.7 mm screws at the top of the keyboard using a #1 Phillips screwdriver.

  6. 4mdRViglGaHOh5Oc
    • Slowly lift the keyboard out, up and towards the screen.

    • Do not try to remove the keyboard completely because it is still attached to the motherboard.

  7. VYIC6qpJPD54V1pZ
    • Using a plastic opening tool, flip the ZIF connector up to release the ribbon and the keyboard.

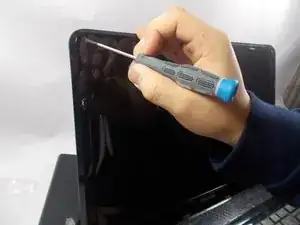

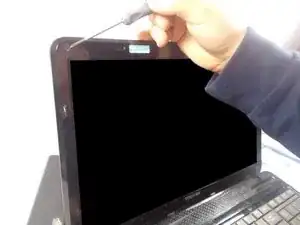

  8. OJXrFbcwSJVGhPH4
    OJXrFbcwSJVGhPH4
    BfDXQMtyPy43yj5q
    • Remove stickers from four corners of laptop.

    • Remove screws underneath stickers.

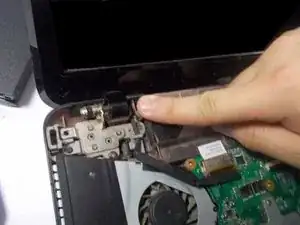

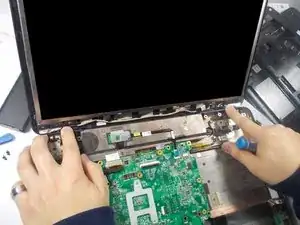

  9. psrHSkqfqtujTAGa
    psrHSkqfqtujTAGa
    sgENGiZUd5xdEBry
    • Use plastic opening tool to pry the hinges off.

    • Remove the screen cover.

    • Unscrew the six screws on the bottom of the screen near the top of the hinges.

    There is a large plastic cover surrounding where the keyboard was and covering the hinges. How did it come off??

    Thomas Hayes -

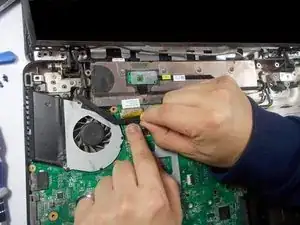

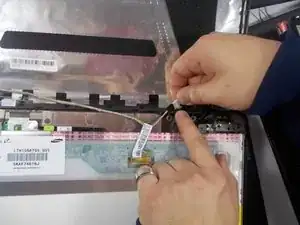

  10. BZDxAdml5ImsGg2w
    BZDxAdml5ImsGg2w
    ARcZQVnTC6XUvrb3
    • Remove cable located next to the fan.

    • Fold down screen without screen back cover to remove cable as shown.

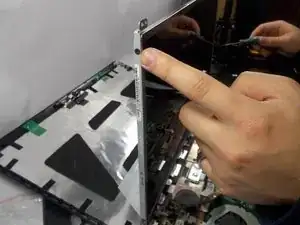

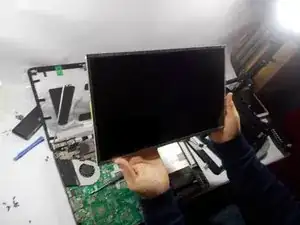

  11. L1EKeELbMmOXfrsJ
    L1EKeELbMmOXfrsJ
    edc3xBA3XiU6S2e2
    • Unscrew both screws on each side of the screen.

    • Remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
