Toshiba Satellite L675D-S7016 Disk Drive Replacement

Geschrieben von: Austin Bons
  • Kommentare: 0
Toshiba Satellite L675D-S7016 Disk Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

If you have determined that your Disk Drive is faulty, this guide will walk you through the removal steps. This piece of the laptop is easily removed and reinstalled. An easy fix for novices.

  1. Fq5Lip6WCeoxEMIT

    • Remove the single captive screw on the back panel with your Phillips #1 screwdriver.

  2. itaTXfiFV2Rock6k
    itaTXfiFV2Rock6k
    EIt5gQbxxctawrFo

    • Pry the removal tab up. You will feel and hear the first clip release, popping up slightly.

    • Work your way around the border of the panel, releasing the rest of the clips.

    • Once all clips are released, lift the cover up and pull towards you.

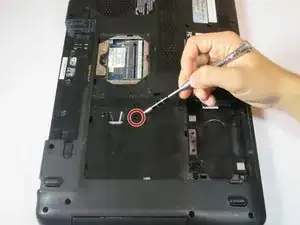

  3. lZLCDWWUsfLGHpSC

    • Remove the single 5mm Phillips #1 screw using the screwdriver.

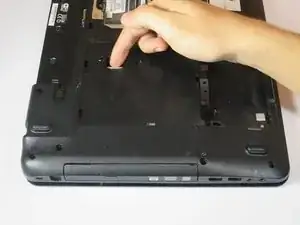

  4. 5cZkgHMFSDANQQGT
    5cZkgHMFSDANQQGT

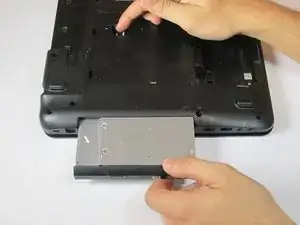

    qYUoyMonyVhaOGBf

    • Push the exposed portion of the Disk Drive outwards.

    • The Disk Drive will begin sliding out of its slot. Remove Disk Drive from the laptop by hand.

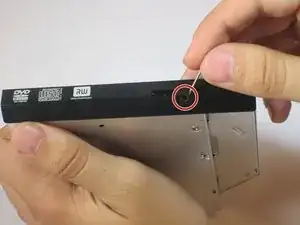

  5. tNXDykqU2yfmfEHI
    tNXDykqU2yfmfEHI
    CRfEReV1dg31XAGS

    • This step is only necessary if there is a disc stuck inside the drive! If you are replacing the drive and do not need to remove a disc, this can be skipped.

    • On the front of the Disk Drive, below the eject button, insert a pin or paperclip into the hole.

    • Push the pin into hole until the Disk Drive pops out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
