Toshiba Satellite L675D-S7016 Fan Replacement

Geschrieben von: Austin Bons
  • Kommentare: 1
Toshiba Satellite L675D-S7016 Fan Replacement

Schwierigkeitsgrad

Difficult

Schritte

18

Zeitaufwand

30 Minuten

Einleitung

If your computer seems consistently hot, please check the troubleshooting guide to determine if you might have a faulty fan. If find that your fan is clogged, or broken, and not working, this guide will show you how to dismantle the back panel and the other parts of the laptop in order to reach the fan. Keep in mind, this removal process is rather difficult, and should not be attempted alone if you are not comfortable with removing components from your laptop.

  1. jFmBEnLUpLuHOBWk

    • Power down the computer and unplug the power adapter.

  2. 3iLy6LyDQGVBKky6

    • Flip the laptop upside down. Locate the two latches on both sides of the battery.

  3. AOBZPlhcFc35xkTn
    AOBZPlhcFc35xkTn
    1mSkMkiLZ1QnIyWf
    5jURmuhHjJLhZwqP

    • Slide the latch on the right outwards, releasing the lock. The latch stays unlocked once moved.

    • Simultaneously slide the latch on the left outwards while pulling the battery towards you.

    • Do not touch the metal connectors on the laptop and the battery.

  4. Fq5Lip6WCeoxEMIT

    • Remove the single captive screw on the back panel with your Phillips #1 screwdriver.

  5. itaTXfiFV2Rock6k
    itaTXfiFV2Rock6k
    EIt5gQbxxctawrFo

    • Pry the removal tab up. You will feel and hear the first clip release, popping up slightly.

    • Work your way around the border of the panel, releasing the rest of the clips.

    • Once all clips are released, lift the cover up and pull towards you.

  6. ZrdZv4WcPU3PmV2b
    ZrdZv4WcPU3PmV2b
    NHCv6ZeaJAMvFWXY

    • Slide the hard drive to the left, using the silver tab.

    • Pull up the silver tab, removing the hard drive from the slot.

    • Do not touch the metal data pins on the hard drive or computer.

  7. mIGU2Q31MuMqL2fW
    mIGU2Q31MuMqL2fW
    RKN1lbNenYVr2Z1O
    IGjyXFNSMHY65nEE

    • Using your fingers, spread the spring tabs holding the top stick of RAM in place.

    • Once the tabs are spread apart, the stick of RAM will pop up.

    • Remove the first stick of RAM by pulling out along the same angle the RAM stick springs up.

  8. QEvcafVj1HTcOGqT
    QEvcafVj1HTcOGqT
    VIQH53bbPG2RYvWG
    KeIfTE4HRWYsDAnW

    • Repeat the same procedure to remove the second stick of RAM.

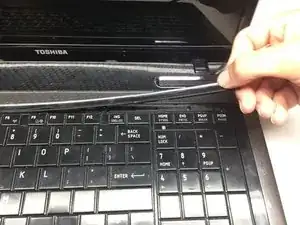

  9. OmqbxH2mmvHZCrUZ
    OmqbxH2mmvHZCrUZ
    IE3EIfX5JERPGcaA
    Pe1PPNJ55ZqmvTPV

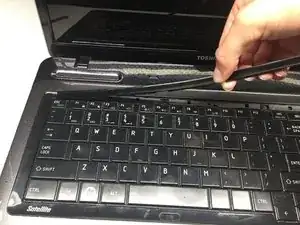

    • Pry under the plastic strip, starting on the top right side of the key board with a Heavy Duty Spudger.

    • Once the first corner is raised, use your hand pulling upwards and release the rest of the strip.

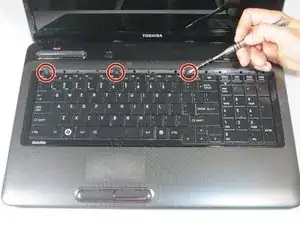

  10. x2TFOKRLNVQaRTIG
    x2TFOKRLNVQaRTIG
    euXAhDo3teGhulSA

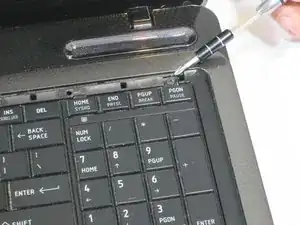

    • Remove the first 3mm screw with the Phillips #1 screwdriver.

    • Remove the next three 3mm screws.

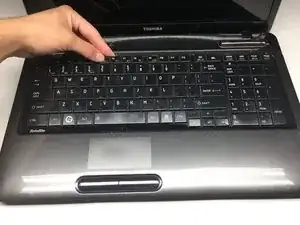

  11. V4JOv2XFl2ebrMAB
    V4JOv2XFl2ebrMAB
    1frLsyEsasAFG2JL

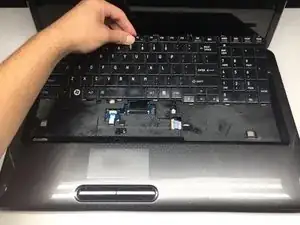

    • Lift the keyboard gently . Slide it forward towards the screen and speakers. This reveals the connection needed for the next step.

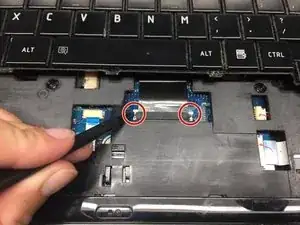

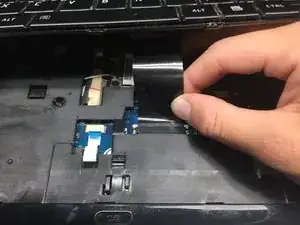

  12. 3OpTB4GQBuCcNEEB
    3OpTB4GQBuCcNEEB
    jTHK5WRAdoSnQJ1A
    kUMslEuoN3MiDMkL

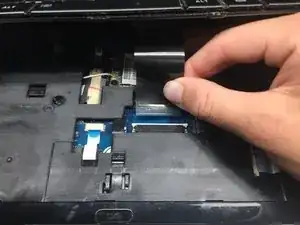

    • Use the pointed end of the Heavy-Duty Spudger and push the pins toward the screen, leaving them in this position.

    • Carefully slide the connector out of the port.

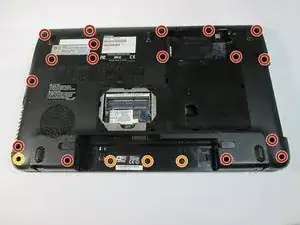

  13. 1tc3xAKITcAqQSgY

    • Remove the following screws with a Phillips #1 screwdriver.

    • Seventeen 5mm screws (recessed)

    • Three 2mm screws in the battery bay (flush-mounted)

    • Single 5mm screw does not need removal unless working on the screen

    In step 13 you must remove the yellow circled screw or you will break the plastic nut holder from the top case.

    Ronald Greene -

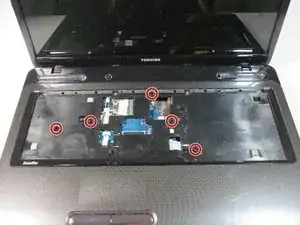

  14. 62P2wPuTcykr3Asp
    62P2wPuTcykr3Asp
    cGm1RonmOhu5r2rD

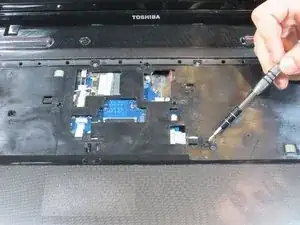

    • Remove five 5mm screws with the screwdriver.

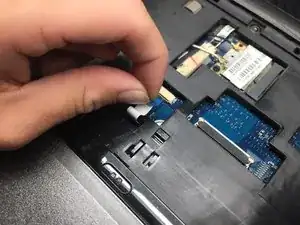

  15. mraHrvDARW4YAt6K
    mraHrvDARW4YAt6K
    hNQGdnV4opNGBfRm

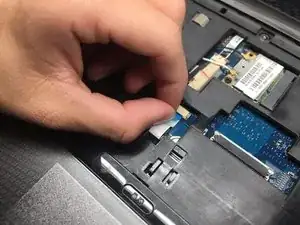

    • Locate the trackpad connector.

    • Pull the ribbon from the connector.

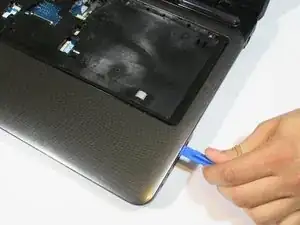

  16. KnShrD1OhBEtNMoq
    KnShrD1OhBEtNMoq
    4WZgj4QHtWTpRBjY

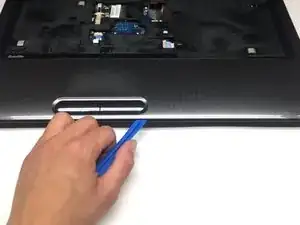

    • Pry under the top case housing along the perimeter with a plastic opening tool.

    • Be careful and gentle with this step, the clips you are releasing here are plastic and can be broken by violent prying.

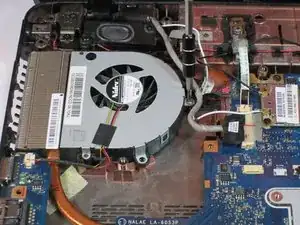

  17. ERpCTWeWTLWRgkOG
    ERpCTWeWTLWRgkOG
    BmPh4mYoKsbjv4GS

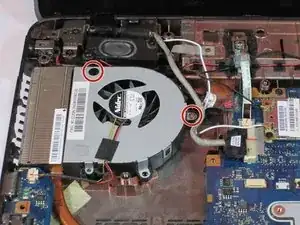

    • Remove the two 5mm screws using screwdriver.

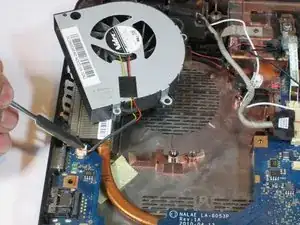

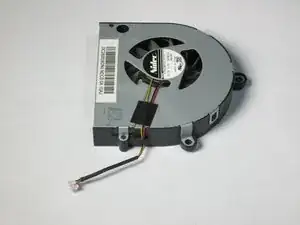

  18. A4J1gMUMkMDCAXnw

    • Disconnect fan wire from connector with metal Spudger -- the fan can now be removed completely.

    • Be careful when removing this connector! It is very delicate. If you break this connector the whole fan needs replacement. If you break the connector on the motherboard side, you may be need a whole new motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
