Einleitung

If you determined that the LCD screen is unresponsive, or "black," this guide will show you how to access and remove the screen.

  1. jFmBEnLUpLuHOBWk
    • Power down the computer and unplug the power adapter.

  2. 3iLy6LyDQGVBKky6
    • Flip the laptop upside down. Locate the two latches on both sides of the battery.

  3. AOBZPlhcFc35xkTn
    AOBZPlhcFc35xkTn
    1mSkMkiLZ1QnIyWf
    5jURmuhHjJLhZwqP
    • Slide the latch on the right outwards, releasing the lock. The latch stays unlocked once moved.

    • Simultaneously slide the latch on the left outwards while pulling the battery towards you.

    • Do not touch the metal connectors on the laptop and the battery.

  4. Fq5Lip6WCeoxEMIT
    • Remove the single captive screw on the back panel with your Phillips #1 screwdriver.

  5. itaTXfiFV2Rock6k
    itaTXfiFV2Rock6k
    EIt5gQbxxctawrFo
    • Pry the removal tab up. You will feel and hear the first clip release, popping up slightly.

    • Work your way around the border of the panel, releasing the rest of the clips.

    • Once all clips are released, lift the cover up and pull towards you.

  6. ZrdZv4WcPU3PmV2b
    ZrdZv4WcPU3PmV2b
    NHCv6ZeaJAMvFWXY
    • Slide the hard drive to the left, using the silver tab.

    • Pull up the silver tab, removing the hard drive from the slot.

    • Do not touch the metal data pins on the hard drive or computer.

  7. mIGU2Q31MuMqL2fW
    mIGU2Q31MuMqL2fW
    RKN1lbNenYVr2Z1O
    IGjyXFNSMHY65nEE
    • Using your fingers, spread the spring tabs holding the top stick of RAM in place.

    • Once the tabs are spread apart, the stick of RAM will pop up.

    • Remove the first stick of RAM by pulling out along the same angle the RAM stick springs up.

  8. QEvcafVj1HTcOGqT
    QEvcafVj1HTcOGqT
    VIQH53bbPG2RYvWG
    KeIfTE4HRWYsDAnW
    • Repeat the same procedure to remove the second stick of RAM.

  9. OmqbxH2mmvHZCrUZ
    OmqbxH2mmvHZCrUZ
    IE3EIfX5JERPGcaA
    Pe1PPNJ55ZqmvTPV
    • Pry under the plastic strip, starting on the top right side of the key board with a Heavy Duty Spudger.

    • Once the first corner is raised, use your hand pulling upwards and release the rest of the strip.

  10. x2TFOKRLNVQaRTIG
    x2TFOKRLNVQaRTIG
    euXAhDo3teGhulSA
    • Remove the first 3mm screw with the Phillips #1 screwdriver.

    • Remove the next three 3mm screws.

  11. V4JOv2XFl2ebrMAB
    V4JOv2XFl2ebrMAB
    1frLsyEsasAFG2JL
    • Lift the keyboard gently . Slide it forward towards the screen and speakers. This reveals the connection needed for the next step.

  12. 3OpTB4GQBuCcNEEB
    3OpTB4GQBuCcNEEB
    jTHK5WRAdoSnQJ1A
    kUMslEuoN3MiDMkL
    • Use the pointed end of the Heavy-Duty Spudger and push the pins toward the screen, leaving them in this position.

    • Carefully slide the connector out of the port.

  13. 1tc3xAKITcAqQSgY
    • Remove the following screws with a Phillips #1 screwdriver.

    • Seventeen 5mm screws (recessed)

    • Three 2mm screws in the battery bay (flush-mounted)

    • Single 5mm screw does not need removal unless working on the screen

    In step 13 you must remove the yellow circled screw or you will break the plastic nut holder from the top case.

    Ronald Greene -

  14. 62P2wPuTcykr3Asp
    62P2wPuTcykr3Asp
    cGm1RonmOhu5r2rD
    • Remove five 5mm screws with the screwdriver.

  15. mraHrvDARW4YAt6K
    mraHrvDARW4YAt6K
    hNQGdnV4opNGBfRm
    • Locate the trackpad connector.

    • Pull the ribbon from the connector.

  16. KnShrD1OhBEtNMoq
    KnShrD1OhBEtNMoq
    4WZgj4QHtWTpRBjY
    • Pry under the top case housing along the perimeter with a plastic opening tool.

    • Be careful and gentle with this step, the clips you are releasing here are plastic and can be broken by violent prying.

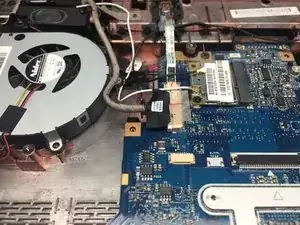

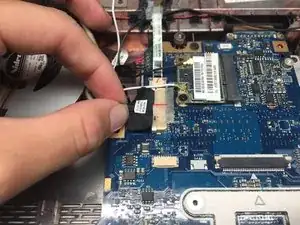

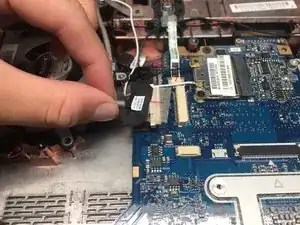

  17. 52KCh2qoVyktXqmN
    52KCh2qoVyktXqmN
    33ufkB3OWvnvPgls
    Ir3hafYJuF3dyQ2Q
    • Remove the screen input wire from the port.

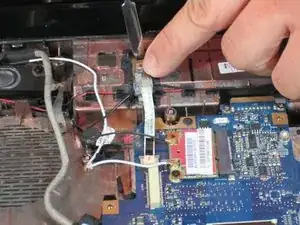

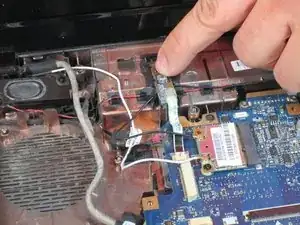

  18. XvZ1awtiplYKFRbh
    XvZ1awtiplYKFRbh
    TU2waOESykoV5aF2
    • Slide the metal power button connector out of its port, allowing the black wire to be moved from under it.

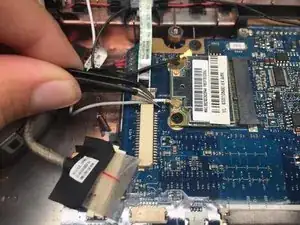

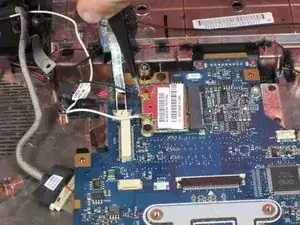

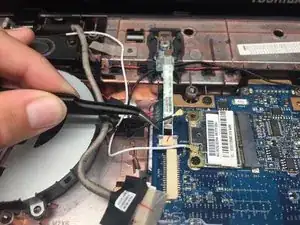

  19. muVyuhr2DPCbq5VI
    muVyuhr2DPCbq5VI
    YCsFVUdqqKjCIaWC
    Mglu2LSsUXOmARHn
    • Lift the black connector with tweezers and repeat the same action for the white connector.

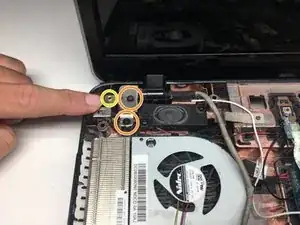

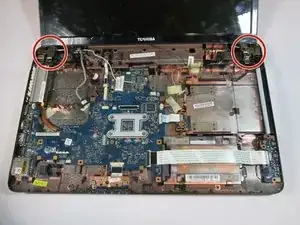

  20. WOyIouCHnnlCxvOL
    WOyIouCHnnlCxvOL
    IEgg2RBJSYNLB1Wh
    b4PhVRjKHxVUNW5W
    • The screen is attached with two hinges on both sides of the laptop.

    • Remove the three 5mm screws (two on the left hinge, one on the right hinge) using a screwdriver.

    • Remove brass fitting held in place by removing the 5mm screw circled in yellow in step 15.

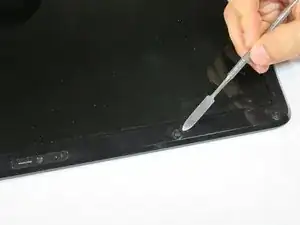

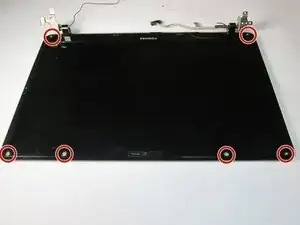

  21. PwIbvWHH6d432jUw
    PwIbvWHH6d432jUw
    xpyBcC1GcUK6OhvD
    VqIAMlTRYyiZDPBU
    • Remove the 6 rubber tabs on the housing using a metal Spudger.

    • Remove the six 6mm screws holding the housing.

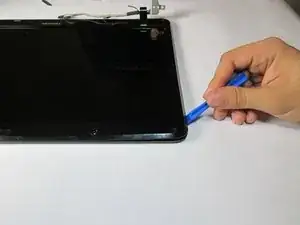

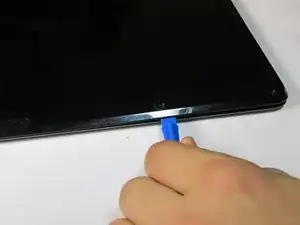

  22. RcFsdgdBHnLdcInD
    RcFsdgdBHnLdcInD
    xyHWJeCbkXBtsgIZ
    • Use the plastic opening tool to pry the screen housing.

    • Only pry from the outside edges! Prying from the inside edges will likely damage the LCD panel.

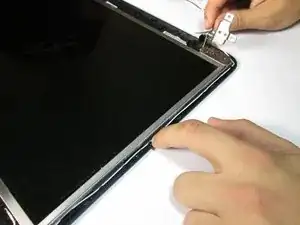

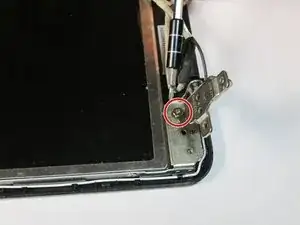

  23. sWqWNxLFkT5gQcPi
    sWqWNxLFkT5gQcPi
    TbR55EJPOvWxMibB
    • Remove two 5mm screws using a screwdriver. There is one screw at each hinge.

    • Remove white wire from the perimeter of the plastic housing.

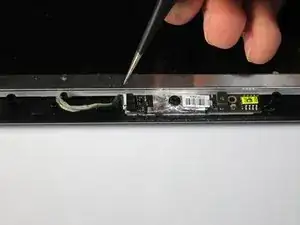

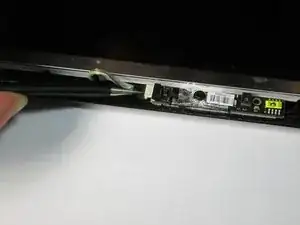

  24. ILmRYHEHSKXV2JVP
    ILmRYHEHSKXV2JVP
    hBeEBKBPZHiBSUXC
    iVVnXDNXNKN1mv1d
    • Disconnect the webcam data wire using tweezers.

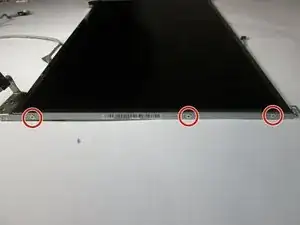

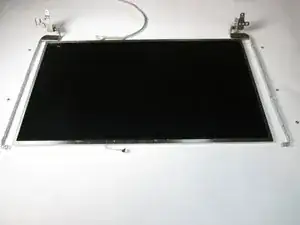

  25. ZecoRNoHEWT3qOWx
    ZecoRNoHEWT3qOWx
    1cVnTdwkJsOOvkJR
    • Remove the three 2.5mm screws on each side of the screen casing with a screwdriver.

    • The two metal casings can now be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
