Toshiba Satellite L755-S5244 Keyboard Replacement

Geschrieben von: Matthew Sai
  • Kommentare: 1
Toshiba Satellite L755-S5244 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

1 - 5 Minuten

Einleitung

If your Toshiba Satellite L755-S5244 keyboard will not respond as a whole, or if a significant amount of individual keys will not respond, it should probably be replaced.

  1. Zb4alJkQfdEPePPs

    • Unsnap and remove the bar above the keyboard.

  2. gOWaoCE2fRhP5WQX

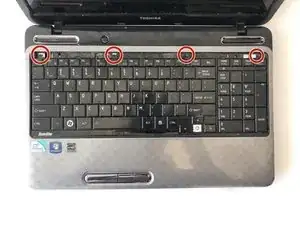

    • Unscrew the four 4mm Phillips #0 screws beneath the bar.

  3. pekRVR4yQiu6YsIN
    pekRVR4yQiu6YsIN
    ifJEuYnkLyrNWFvL

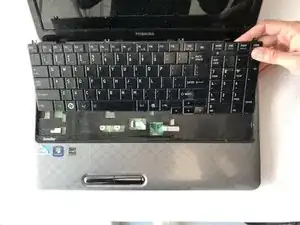

    • Pull keyboard up and partially out.

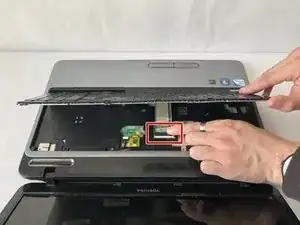

    • Detach conductor ribbon.

    • Slide keyboard out completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Matthew Sai

Mitglied seit: 04/04/19

97 Reputation

Ein Kommentar

Step One -On my Toshiba L755-S5244 there is a screw accessible from the battery bay that holds this bar in place.

Mike -
