Einleitung
If your computer has become very slow, crashed frequently, or you simply do not have enough RAM to run a program, this guide will show you how to access and replace RAM sticks.
Werkzeuge
-
-

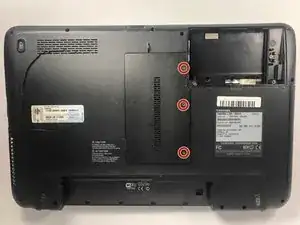

Loosen the two 3mm Phillips #0 screws securing the hard drive panel. The panel will retain the screws, so do not remove them completely.
-
Remove the panel from the laptop (the hard drive does not need to be removed).
-
-
-

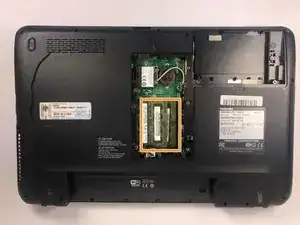

Loosen the three 3mm Phillips #0 screws that secure the center panel. The screws are retained by the cover, so do not remove them completely.
-

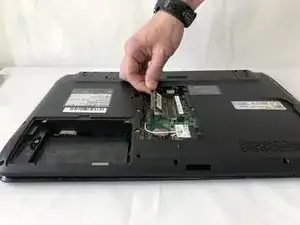

Remove the panel by pulling out to the right.
-

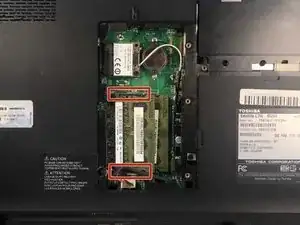

The two RAM sticks are stacked, one on top of the other.
-
-
-
Each RAM stick has two (2) snap locks, one on each end. In the image the bottom snap is obscured by the cable.
-
-
-

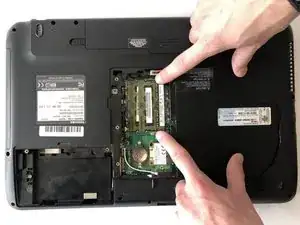

Move the retaining clips out of their locking position, allowing the RAM stick to pop up.
-

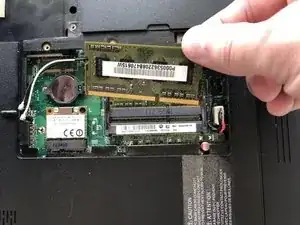

Lift the free end of the RAM stick until the stick can be freely removed from its slot.
-
To reassemble your device, follow these instructions in reverse order.
