Toshiba Satellite L855-S5119 Battery Removal

Geschrieben von: Tyler Shafer
  • Kommentare: 1
Toshiba Satellite L855-S5119 Battery Removal

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

30 Minuten

Einleitung

This guide informs readers on the removal and replacement the battery in the Toshiba Satellite L855-S5119. For safety reasons, it is essential to remove the battery prior to operating on the laptop's internals.

  1. Ce2cskwZ2mJkgyEo

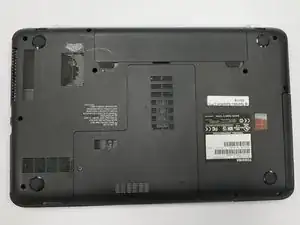

    • Turn the laptop face down to expose the back.

    • Locate the battery.

  2. Zl1mHrnoDqliBZwA
    Zl1mHrnoDqliBZwA
    Bp2Y4ODHmQtg36IX
    VE6fNN6HnE1ZBMRC

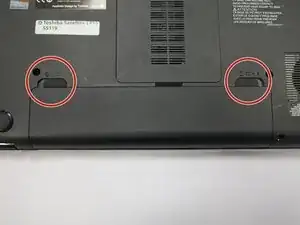

    • Locate the battery latches. The battery latch mechanism can be compared to a door -- The right latch, when pushed right, unlocks the battery, while the left latch, when pushed left, releases the battery, pushing it out from its container.

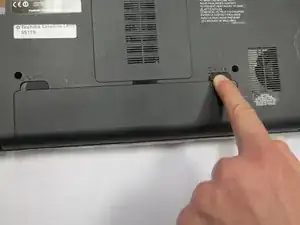

    • Push the latch on the right to the right to unlock the battery latch locking mechanism.

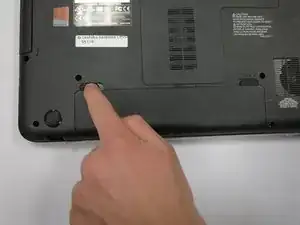

    • Push the battery latch on the left to the left to unlock the battery.

    And de model for replacement is…..?

    Paulo Mesa -

  3. s1FCI2eHqlbWn5pp
    s1FCI2eHqlbWn5pp
    dBKuEvAjiZbTh4rC

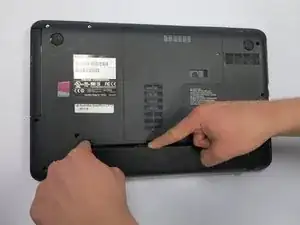

    • With the left battery latch pushed left, remove the battery from its port by lifting the battery from the middle of the battery.

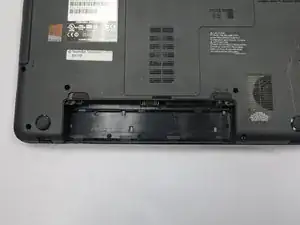

    • The battery will come free.

Abschluss

To reassemble your device, follow these instructions in reverse order.
