Toshiba Satellite L855-S5119 Fan Replacement

Geschrieben von: xu yan
  • Kommentare: 1
Toshiba Satellite L855-S5119 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

8 Minuten

Einleitung

This guide will help readers replace the fan which can stop working over time.

  1. Ce2cskwZ2mJkgyEo

    • Turn the laptop face down to expose the back.

    • Locate the battery.

  2. Zl1mHrnoDqliBZwA
    Zl1mHrnoDqliBZwA
    Bp2Y4ODHmQtg36IX
    VE6fNN6HnE1ZBMRC

    • Locate the battery latches. The battery latch mechanism can be compared to a door -- The right latch, when pushed right, unlocks the battery, while the left latch, when pushed left, releases the battery, pushing it out from its container.

    • Push the latch on the right to the right to unlock the battery latch locking mechanism.

    • Push the battery latch on the left to the left to unlock the battery.

    And de model for replacement is…..?

    Paulo Mesa -

  3. s1FCI2eHqlbWn5pp
    s1FCI2eHqlbWn5pp
    dBKuEvAjiZbTh4rC

    • With the left battery latch pushed left, remove the battery from its port by lifting the battery from the middle of the battery.

    • The battery will come free.

  4. uNDGkwi4LQYt1NUN
    uNDGkwi4LQYt1NUN
    65DFSGsCNMxVhaZQ
    RwnK5Llvmu6r2LhJ

    • Turn the laptop over to place it top down.

    • Use a Phillips #1 screwdriver to remove the screw holding in the back plate. This screw does not come out of the plate.

    • Lift the back plate off the laptop, exposing the RAM and Hard Disk.

  5. q4SdXiWFPq1Xvr2n
    q4SdXiWFPq1Xvr2n
    vATYuwjsKw6VwaUV

    • Using a Phillips #0 screwdriver, remove the single 3mm screw.

  6. XXNGxnyPKQQtMD3h
    XXNGxnyPKQQtMD3h
    SImYXRFfUOXrBUsF

    • Rotate the laptop so that you have access to the optical drive.

    • The optical drive is now only attached by a port in the drive's back. The optical drive can be pulled straight out of its housing.

    • Remove the drive.

  7. HPwPHKkJvEyr5RZL
    HPwPHKkJvEyr5RZL
    RlKZce5UwdE2VpCS

    • Unscrew the hard drive.

    • There could be up to five 3mm screws - One on each corner of the hard drive, and one at one end of the hard drive, attaching the drive to the laptop's frame.

    • Carefully push the hard drive away from its port. This should not require substantial force.

    • Lift the hard drive out.

    • Some hard drives have a plastic tab, which can be lifted from to remove the hard drive.

    • Otherwise, take hold of opposite sides of the hard drive and lift the drive straight up.

  8. 1NQwfIZYFq1HnvpP
    1NQwfIZYFq1HnvpP
    pGfTDY3PVZVcmTAV

    • Unscrew the screws circled in red. This includes eleven 6mm screws, and one 5mm screw underneath where the optical drive was housed. All screws can be removed with a Phillips #0 screwdriver.

    • Carefully remove the back cover. The battery holder contains notches that help hold the case in place, so take care not to break those.

  9. LwVhA6GrEWYEp1FN
    LwVhA6GrEWYEp1FN
    o65UECOIfZTE1Ukc
    v6BhBlDLUQneVido

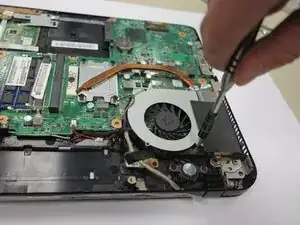

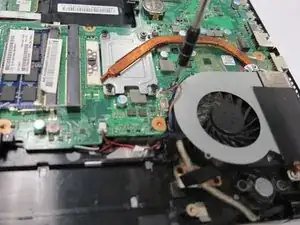

    • Remove the two 5mm screws on the fan assembly using a Phillips #0 screwdriver.

  10. LZ6bAY3hSQIDOcrO
    LZ6bAY3hSQIDOcrO
    oox2jBEBidJpqGvI
    yfQPOc4SXkDa1ONR

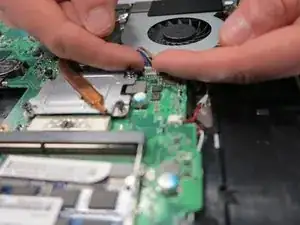

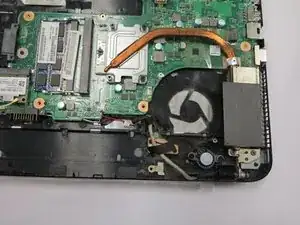

    • Unplug the fan's connection to the motherboard.

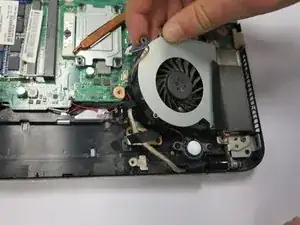

    • Lift the fan from the laptop.

    • Use a soft cloth to clean the dust away from where the fan was.

Abschluss

To reassemble your device, follow these instructions in reverse order.
