So, your spouse fell on your computer while taking a nap... let's replace the LCD. I got mine from http://www.LaptopScreen.com
-
First, here's some tools you might consider using while working. You may also want an old credit card of your choosing to help get inside. More on that later.
-
-
-

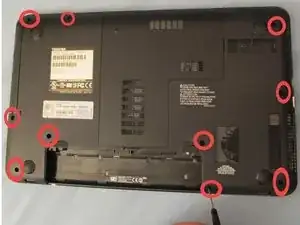

Next, remove the 10 screws located in the image. They are all on the bottom of the machine.
-
-
-
You might consider using some sort of screw-organizer to make life easier. Be it paper, tape or whatever.
-
Use a dry erase marker (or other writing utensil) to mark where each set of screws came from.
-
-
-
Remove the plastic covering that encloses the Hard Drive and RAM. This is done by loosening (not removing) a single screw on the large plastic piece.
-

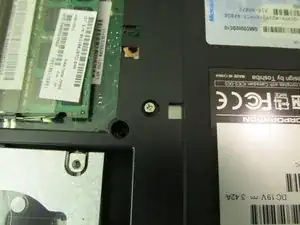

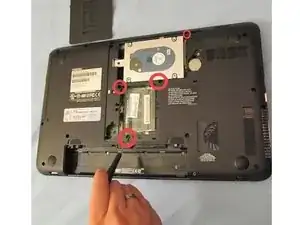

After removal, there are 4 screws under the plastic we need to remove. See the image to locate them all. Place them in your screw organizer.
-
-
-

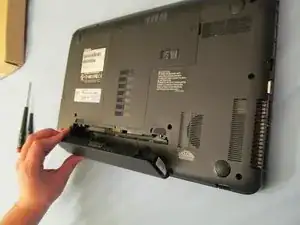

Next, remove the single screw holding in your DVD drive. After this screw is removed, your DVD drive will slide right out. Remove it.
-
-
-

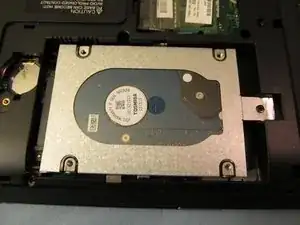

Next, remove the single screw holding the hard drive in place (it's located on the right).
-
After removal of that screw, slide the Hard Drive casing to the right -->, remove.
-
-
-

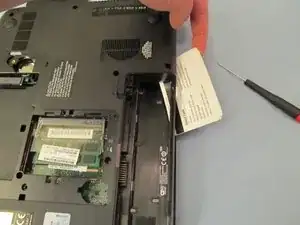

Slide a credit card all the way around the outer edge of the laptop to help pry the plastic clips open.
-
if anything snags, or wont come apart, try twisting the card gently, so as to wedge it open.
-
-
-
Open the laptop so that the hinges can move into a vertical position instead of being flush with the screws you just removed.
-
Put the laptop back into closed position.
-
-
-

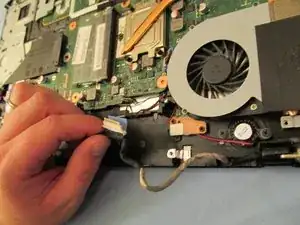

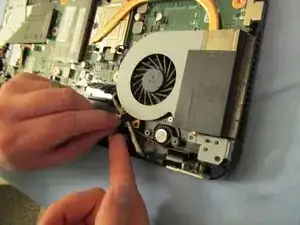

Carefully tug the LCD cable out from under the motherboard.
-
Make sure that the LCD cable is fully seated before you finish up. Use a light to double check it. I had to take the PC apart 4 times till I found out the cable wasn't in the socket but underneath it.
-
-
-

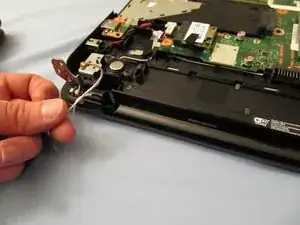

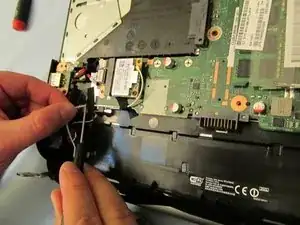

Remove the wifi cable by unfastening it from the wifi card first, then following the wire. Remove any tape necessary.
-
-
-

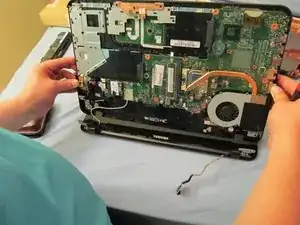

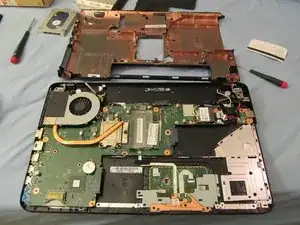

Open the laptop again, bottom facing you, and slide the motherboard piece away from you. This will disconnect it from the LCD unit we're after.
-
-
-
Carefully use a very small flat-head precision screwdriver to remove the plastic circles guarding the LCD screws we need to get to. Found in corners.
-
Remove the screws underneath.
-
-
-

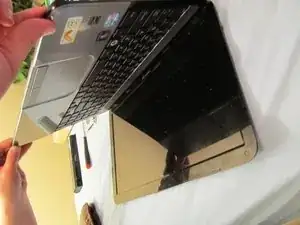

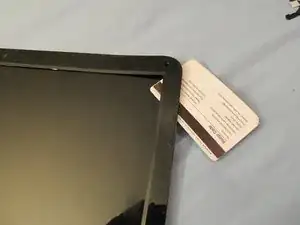

After the screws are removed from all 4 corners, grab your credit card and pry around all the edges to get the plastic bezel piece off.
-
-
-

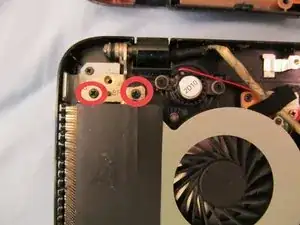

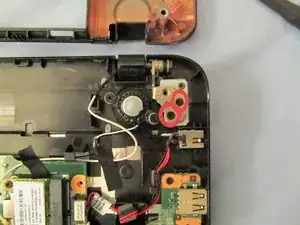

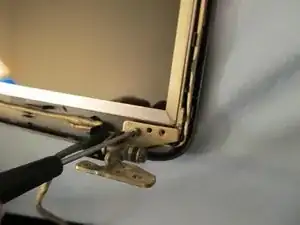

After the bezel is removed, unfasten two revealed screws: One on the right hinge, one on the left.
-
-
-

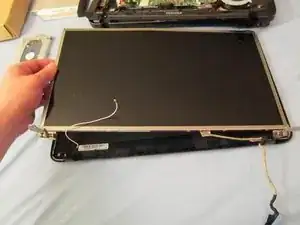

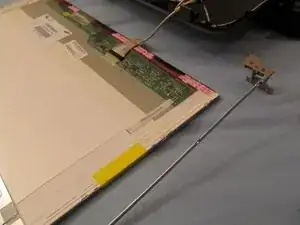

Once the LCD is on it's face (and the cables are still intact) remove the 6 screws holding the metal LCD holders in place. There are 3 screws on each side.
-
-
-

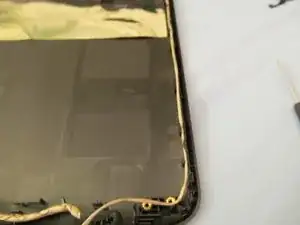

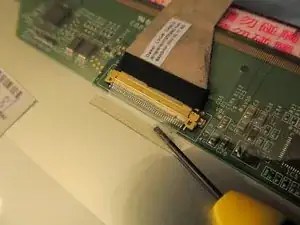

Gently pry the small piece of tape away from the back of the LCD. This tape helps keep the LCD cable intact.
-

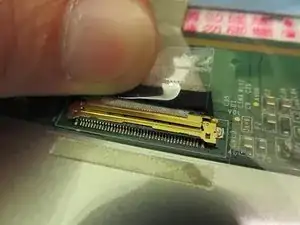

Pic 2: Using the tape you just pried up, pull back gently, unplugging the LCD cable from the old LCD screen.
-
-
-

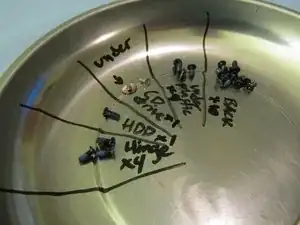

Check out your screw collection. This is roughly what yours should look like if you're keeping track of them.
-

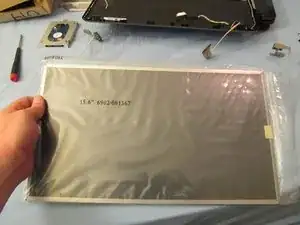

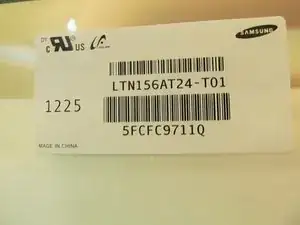

Finally, bust out your new LCD screen that you should have purchased from www.laptopscreen.com, and reverse the entire procedure for installation.
-
-- Final Notes and Credits: Difficulty Level: Medium. | Screen purchased from: www.laptopscreen.com (their email support will land you a compatible screen within hours!) | We are The PC Penguin, www.thepcpenguin.com
-
To reassemble your device, follow these instructions in reverse order.
