Toshiba Satellite M55-S135 Optical Drive Replacement

Geschrieben von: Yuheng Huang
  • Kommentare: 0
Toshiba Satellite M55-S135 Optical Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will illustrate how to replace the optical drive in your Toshiba Satellite.

  1. PoZW2uQuQ1wOwcu6

    • Orient the laptop so that it is closed, faced down and has the battery facing away from you.

    • Use the Phillips 00 screwdriver to remove the 7.50mm screw from the panel.

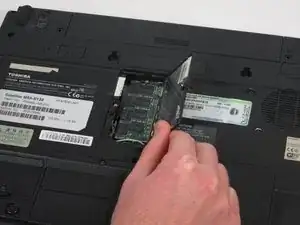

  2. iUjiyqlZlFdGGqXR

    • Carefully remove the cover to reveal the RAM compartment.

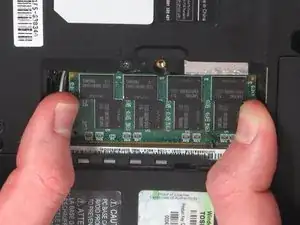

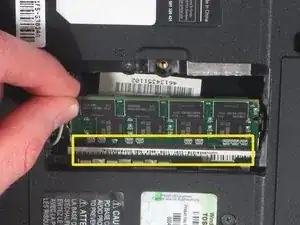

  3. 1UstJS1YgfBRn4uu
    1UstJS1YgfBRn4uu
    k6EsZmmTrBoadpoK

    • Rotate the laptop 90 degrees clockwise.

    • Pull back the two silver clips that hold the RAM in place.

    • Gently pull the RAM out of the slot and lift up to remove the RAM from the laptop.

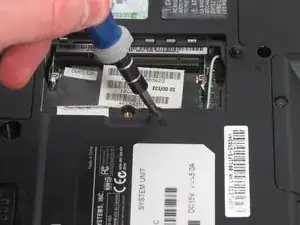

  4. BMqWUa3wZXoUfCL6

    • Use the Phillips #00 screwdriver to remove the 6.50mm screw holding the gray metal bracket in place.

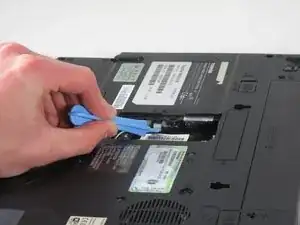

  5. Z1JmFP3toYdpMATL

    • Turn the laptop 180 degrees then tilt the near side up.

    • Push the back side of the optical drive out of the laptop using the plastic opening tool.

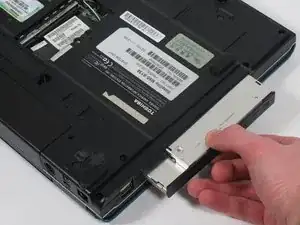

  6. CkSiTd5wK5unFlA1

    • Pull the optical drive out of the laptop using your fingers.

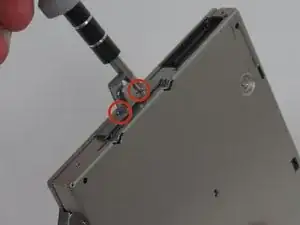

  7. tkXbNjYxAbFPJkZe

    • Using the Phillips 00 screwdriver, unscrew the two 2.50mm screws that connect the metal bracket to the optical drive.

    • Remove the bracket from optical drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
