Einleitung

This guide will provide a walk-through on how to remove the screen in your Toshiba Satellite.

  1. Tn4EGN3YF4ZRbVd1
    • Orient the laptop so that it is closed, faced down, and the battery is facing away from you.

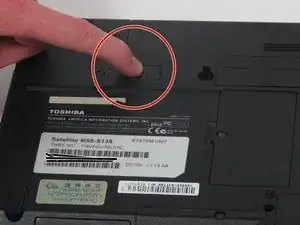

    • Slide the unlock switch in the top left-hand corner to the left/unlock position.

  2. uUVV2QGJBxyKmTvP
    • Hold the switch in upper right-hand corner to the right.

    • With the switch held open, pull the battery straight away from the laptop.

  3. li3DZLYTFgUs6den
    li3DZLYTFgUs6den
    EQKu5DIihtLgZXe1

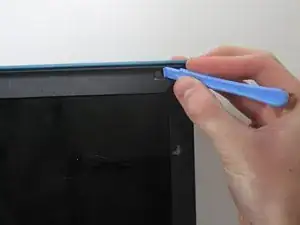

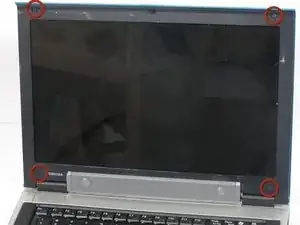

    • Use the plastic opening tool to remove the four small rubber pop-out squares from the corners of your screen.

    • The laptop displayed in the picture does not have these plastic squares.

  4. uG6mHGI31hdULmT1
    uG6mHGI31hdULmT1
    GlRcPchaZEtDOhEj

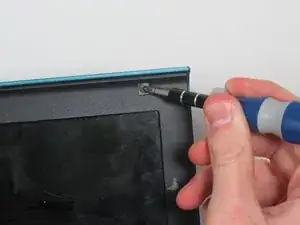

    • Use the Phillips 00 screwdriver to unscrew the four 6.72mm screws from the corners of the screen.

    • The screws will be located underneath the previously removed black squares.

  5. qHP4KLKdgZLiUmmv

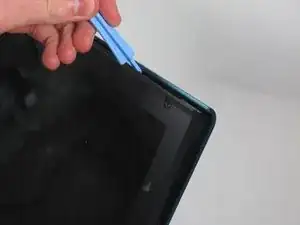

    • Use the plastic opening tool to pop off the black plastic casing that surrounds the screen.

  6. hV4vHQPNaZdnVgKg
    hV4vHQPNaZdnVgKg
    SdKGjW4LGHMGaSGc

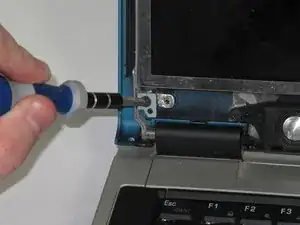

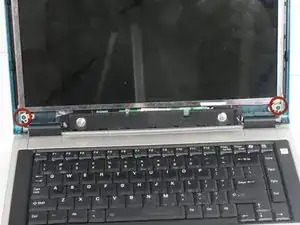

    • Use the Phillips 00 screwdriver to remove the two 6.72mm screws at the bottom left and right of the screen.

  7. mmWedKLpyKW5dGWH
    mmWedKLpyKW5dGWH
    sHjXoj2kxvCdHkCK
    • Turn the laptop 90 degrees clockwise.

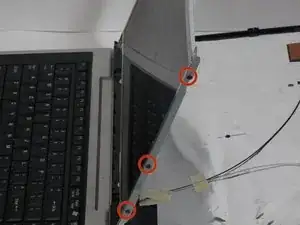

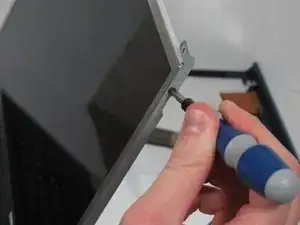

    • Use the Phillips 00 screwdriver to remove the six 3.78mm screws from both sides of the screen.

    • Hold on to the screen while removing the screws.

  8. uy1RMnoB5VWYPsus
    • Fold the screen down so that the back of the screen is visible.

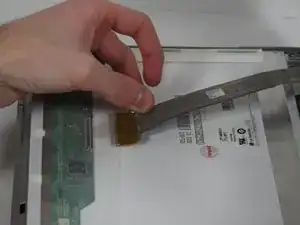

    • Remove the yellow wiring connected to the top of the back of the screen by pulling it out and then up.

  9. BYvcbnqyC4FBgFs1
    • Use the Phillips 00 screwdriver to remove the 5.54mm screw connecting the green panel to the laptop frame.

  10. qSWuXAijyOsAPtSH

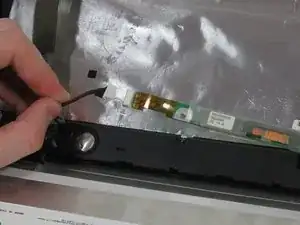

    • Pull out the green panel and disconnect the black cable from the belly of the green panel.

    • The screen should be fully disconnected from laptop at this point.

Abschluss

To reassemble your device, follow these instructions in reverse order.
