Einleitung
If your keyboard is malfunctioning and you want to replace it, or you need to take it out to get to a part underneath it, then use this guide to learn how to do so.
Werkzeuge
-
-
Flip the laptop over so the bottom is facing upward and the battery is on top.
-
Slide the tab below the battery to the left.
-
-
-
Slide and hold the tab on the right side of the battery to the right.
-
While holding the right tab, slide the battery upward and out its socket.
-
-
-

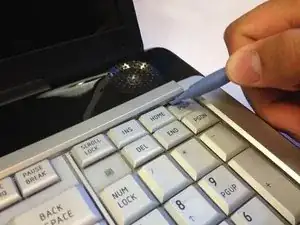

Place the head of a plastic opening tool underneath the plastic strip lining the top of the keyboard, right above the "PGUP" button.
-

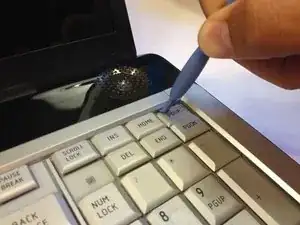

Next, pull the strip up using a plastic opening tool with a light force, until it pops off.
-
-
-

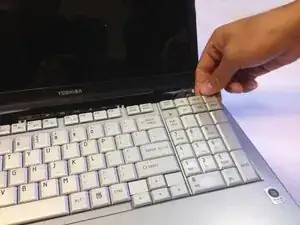

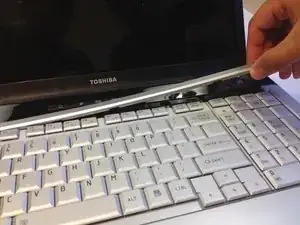

Lightly lift from the side that was popped up earlier in order to pop the rest of the strip off of the laptop.
-
-
-

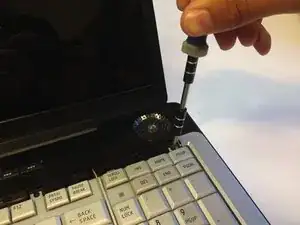

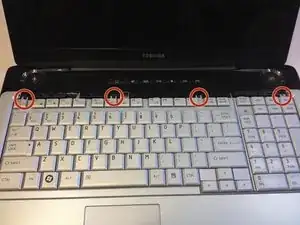

Use a #1 Phillips screwdriver to take out the four 4mm Phillips #1 screws that were underneath the plastic strip.
-
-
-

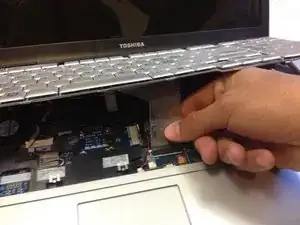

Lightly lift up on the keyboard from one of its top corners and pull it towards the screen so you can safely remove the ribbon cable.
-
At the base of the ribbon cable, there is a tiny tab that runs across the width of the connector. Flip it up. You can now pull the ribbon cable free with no resistance towards the monitor.
-

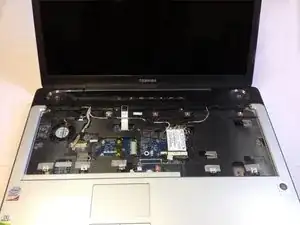

With the cable unplugged, the keyboard can be lifted away from the laptop.
-
To reassemble your device, follow these instructions in reverse order.
