Toshiba Satellite P205D-S8804 CD Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

7 - 9 Minuten

Einleitung

For this replacement you will have remove the keyboard to get to the CD drive. Steps to remove the keyboard can be found in prerequisite guide at the top of the page. After the keyboard is remove then you are able to move on to the CD drive.

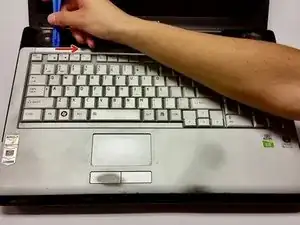

  1. Q2DZTC2CFChn22wL

    • Place the laptop with the screen facing you and grab the opening tool.

    • Insert it into the top corner of the keyboard and slide it to the right along the length of the keyboard.

    • You will feel the popping sensation as it slides along.

  2. 5wLLiblVHNktAr2C

    • Lit up the left side of the small plastic bar at the top of the keyboard.

    • Be careful when removing it, because you will need to apply a bit of force .

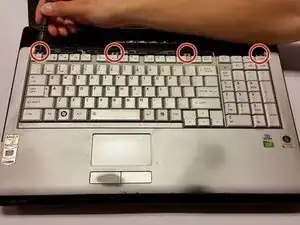

  3. RTNsUZFAa2mNp5HA

    • Use a PH0 screwdriver to unscrew the 4 screws at the top of the keyboard.

    didn't mention length of screws

    Andy Feng -

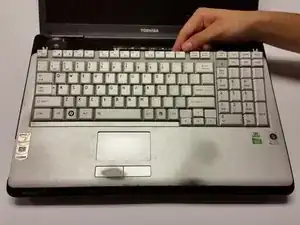

  4. QZFn3Ajao4x2TicG

    • Lift up the keyboard and pull it toward the screen.

    • The keyboard will still be connected to the motherboard by a ribbon cable.

    "away from your body" might be redundant/confusing

    Andy Feng -

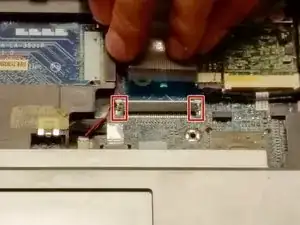

  5. rTSShZqwMTwBUJES
    rTSShZqwMTwBUJES
    SUc2CfPaf1sXq1Bk

    • To remove the ribbon cable, push upward on the small tabs located on either side of the ribbon.

    The ribbon mentioned is attached to a ZIF connector, so need to guide through removal from ZIF

    Andy Feng -

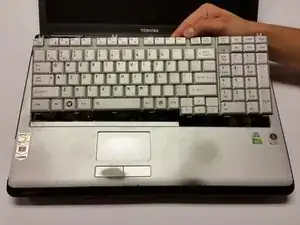

  6. JtOqyAEyQlKJIJgj

    • Once the ribbon is released the keyboard can be removed .

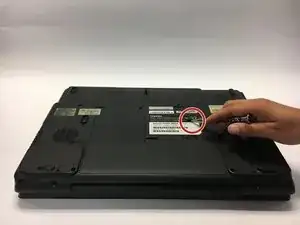

  7. lXqRUJ6RbsQESldh

    • Flip the computer over with the hinge facing you.

    • Remove one screw that is located in the Toshiba lable on the bottom of the computer.

    name screw length

    Andy Feng -

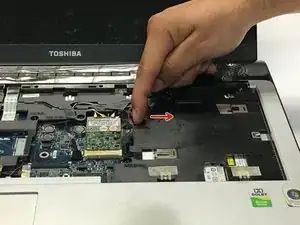

  8. wyUMe2WK5L2nbOuE

    • Flip the computer back over and push the metal tab to the right to release the CD drive from its docking port.

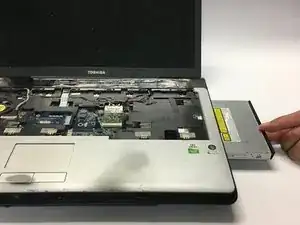

  9. OWILhJGxroSRKMTy

    • Remove the CD Drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
