Toshiba Satellite P50W-C Battery Replacement

Geschrieben von: Lawrence Lozada
  • Kommentare: 0
Toshiba Satellite P50W-C Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

The battery is the main source of the device. Be sure to unplug the device from any power source before attempting to remove the battery.

  1. hPtmChoDUGycnAhq

    • Turn the laptop off, unplug the AC adapter, and any other auxiliary components.

    • Turn over the laptop and proceed to take out the seven 5mm silver JIS #1 head screws. If some of the screws are difficult to take out use the tweezers to help.

  2. pw6NHvWLQLfDikyC

    • Use the screwdriver to take out the three 5mm black JIS #1 head screws that are located on the hinge.

  3. WRr45qBTeW2IUw6G
    WRr45qBTeW2IUw6G
    lGG5ioxJIQwMsESO

    • Use the spudger to pry under the back cover until it pops off.

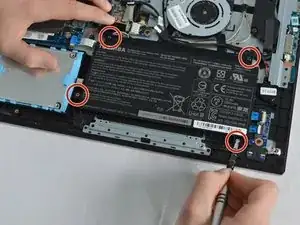

  4. TVpiVYZ5dGdvfmY6

    • Unscrew the four 5 mm JIS #1 head screws holding the battery to the device and gently remove the battery.

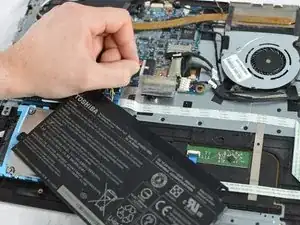

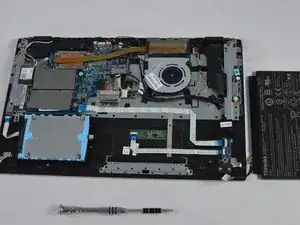

  5. y4OrpTKFnlYAl6ea
    y4OrpTKFnlYAl6ea
    ohQnUpRRIvSDCBKB

    • Disconnect the battery from the motherboard by gently pulling out the black connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
