Einleitung
The motherboard contains the principal components of the device. Make sure the device is not connected to any source of power before removing any parts. Clips and connections may break easily so be gentle when removing parts.
Werkzeuge
-
-
Turn over the laptop and proceed to take out the seven 5mm silver JIS #1 head screws. If some of the screws are difficult to take out use the tweezers to help.
-
-
-
Use the screwdriver to take out the three 5mm black JIS #1 head screws that are located on the hinge.
-
-
-

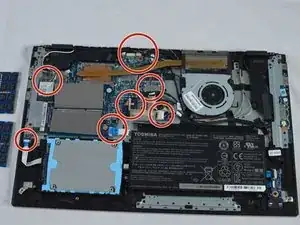

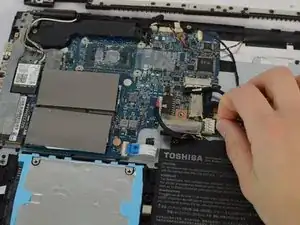

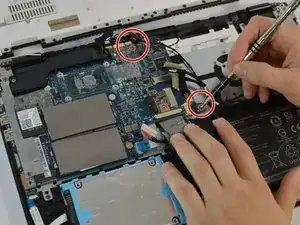

Remove all power connections to the motherboard. Including the black and white power connections to the wifi module.
-
-
-

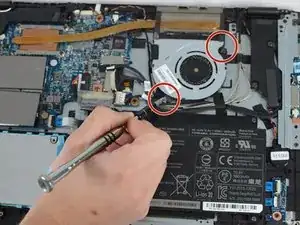

Unscrew the two 7 mm JIS head screws in the fan .
-

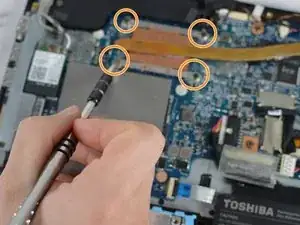

Then unscrew the four 2 mm JIS head screws connecting the heat sink to the mother board.
-

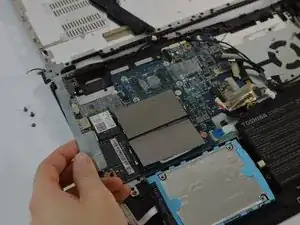

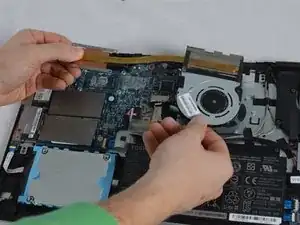

Then take out the heat sink and fan.
-
-
-

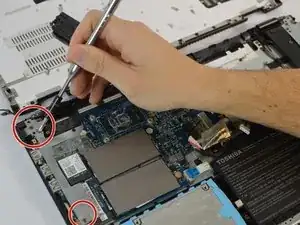

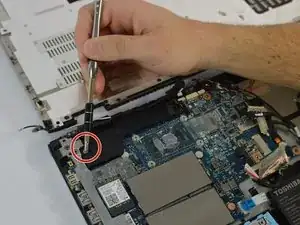

Remove all three 5 mm silver JIS head screws connecting the silver cover to the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
