Toshiba Satellite P55W-C5316 Battery Replacement

Geschrieben von: Alec Bonnell
  • Kommentare: 2
Toshiba Satellite P55W-C5316 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide about removing the battery is fairly straightforward. Be careful to not yank on the connector between the battery and the laptop. Also, make sure that the laptop is turned off before attempting this guide.

  1. FLLCGXhwdsUdYVZK
    FLLCGXhwdsUdYVZK
    oSuMJjEKHZJxAWTr

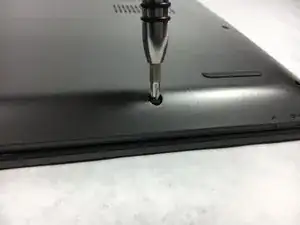

    • To prevent injury, ensure the laptop is powered off before starting your work.

    • Unscrew the .3mm Phillips head screws on the back panel using the PH1 screwdriver.

  2. HHlYZYBLMwY1HnRS
    HHlYZYBLMwY1HnRS
    qoJWpCj5FuDLKWGd
    Mtg5rYJHHRkvgVus

    • Be careful to not crack the panel where the USB and power cord ports are.

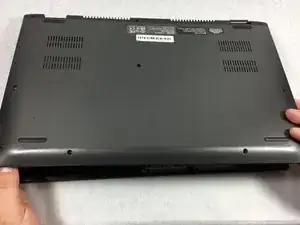

    • Insert the opening tool in between the back panel and the laptop to pry it open.

    • The back panel is magnetically attached at the front of the laptop so you may have to move the opening tool along the length of the panel.

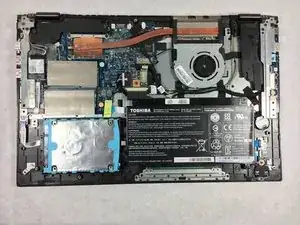

    • Lift the panel from the front off of the laptop.

    Please where to buy this back panel , thank you

    Yvette Menthong Mana -

  3. HAHSrfjQbEuuAegH
    HAHSrfjQbEuuAegH
    oFTPOeFAdagILMT6
    BsTKxWWAJMUYgZvX

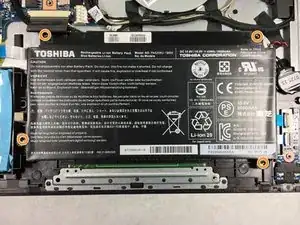

    • The battery is located in the bottom right corner of the laptop.

    • Remove the four .5mm Phillips head screws on the battery using the PH1 screwdriver.

  4. PMpamUbiBb16VsCK
    PMpamUbiBb16VsCK
    ECoOAFKqBNZJyIRV

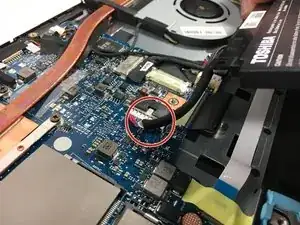

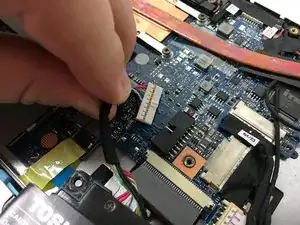

    • Do not tug on the cord or battery. Instead, pull evenly on the connector.

    • Lift the battery and gently pull out the bundled cable connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
