Toshiba Satellite P55W-C5316 Motherboard Replacement

Geschrieben von: Zeyad Ali
  • Kommentare: 3
Toshiba Satellite P55W-C5316 Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

21

Zeitaufwand

3 Stunden

Einleitung

The motherboard acts as the central hub of communication between all of the components in your device. A failing motherboard may affect the rest of the components in your device. Symptoms of a failing motherboard include the blue screen of death (BSoD), frozen screen, etc. If you’re looking to replace the motherboard in your laptop, follow these instructions to remove the motherboard from your device.

  1. FLLCGXhwdsUdYVZK
    FLLCGXhwdsUdYVZK
    oSuMJjEKHZJxAWTr

    • To prevent injury, ensure the laptop is powered off before starting your work.

    • Unscrew the .3mm Phillips head screws on the back panel using the PH1 screwdriver.

  2. HHlYZYBLMwY1HnRS
    HHlYZYBLMwY1HnRS
    qoJWpCj5FuDLKWGd
    Mtg5rYJHHRkvgVus

    • Be careful to not crack the panel where the USB and power cord ports are.

    • Insert the opening tool in between the back panel and the laptop to pry it open.

    • The back panel is magnetically attached at the front of the laptop so you may have to move the opening tool along the length of the panel.

    • Lift the panel from the front off of the laptop.

    Please where to buy this back panel , thank you

    Yvette Menthong Mana -

  3. MgpitAshqe2G1FY5

    • Remove both screws from the fan.

  4. CDQqnIgwDHw1wLh3
    CDQqnIgwDHw1wLh3
    YKTPggILLSyaMoa1

    • Remove the screws securing the 4 corners of the heatsink.

    • Gently remove the heatsink. Keep in mind thermal paste is used and it may be slightly difficult to remove.

    Replace new fan, need more detail where to put thermal paste on the heatsink like just around edge or whole or what? How much should put thermal paste on the heatsink? Need show some pictures about put thermal paste on the heatsink, please.

    Linda Lepisto -

  5. AlmYUEUC3AmOFdcR
    AlmYUEUC3AmOFdcR
    D2RocRElAtIkWMeJ
    lSJKCZVYmSZ5LCEh

    • Remove the small, beige colored connector securing the fan to the laptop and remove the fan and heatsink assembly from the laptop.

  6. yNcJ3MXSs1IbCjsI

    • Remove all black pieces of tape on the motherboard.

    Hi Zeyad, I also have this same laptop, one of the IC on the motherboard was burned out and destroyed, I wanted to try to use a new IC to replace it. I can’t see the writings on this IC, could you please help me to see these writings? Thank you in advance.

    Ted -

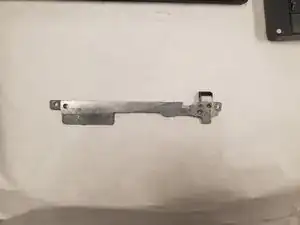

  7. wDilLXj3Pntb4d3L
    wDilLXj3Pntb4d3L
    placQHSklPpnSVgd

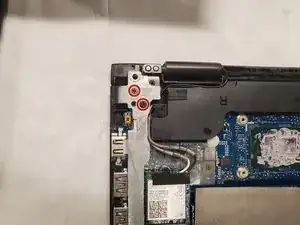

    • Using a Phillips #00 screwdriver, remove the two screws on the top left corner of the USB protector (metal bar located on the left side of the motherboard).

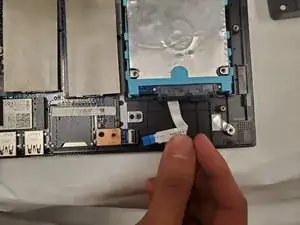

  8. FWwBSBPyngewvaBT
    FWwBSBPyngewvaBT
    AZDMD1gnHGnRpWXv

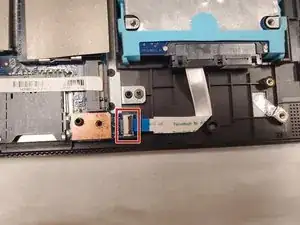

    • Disconnect the hard drive (silver rectangular box located on the bottom left corner of the laptop) by flipping the small black latch securing the connecter upwards, and pulling the connecter out.

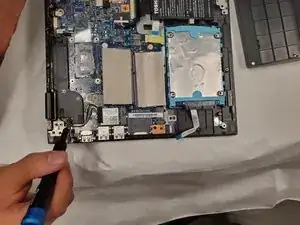

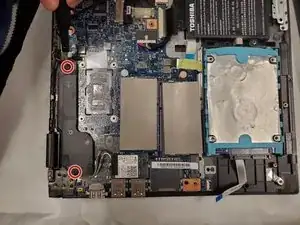

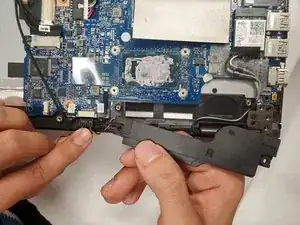

  9. DhXynO311NwwvKnk
    DhXynO311NwwvKnk
    llcDvadVb6E63uw1
    T3hmOoOaDaRZdD4H

    • Using the Phillips #00 screwdriver, remove the two screws on both ends of black rectangular plastic bar labeled “R” located on the top edge of the motherboard.

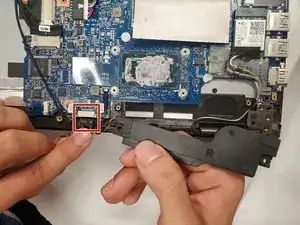

  10. GOltANMfFTkwsBYt

    • Remove display cables located on both sides of the beige located on the right side of the “R” bar.

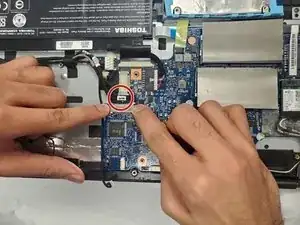

  11. FGSdjDuQ1fvDG1iP

    • Remove the black cable labeled “M/B” ( keep hand grounded) by pulling towards you while keeping the cable parallel to the laptop.

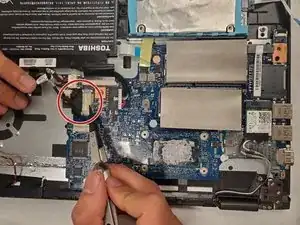

  12. ThkwXOBBWOvBfrlv

    • Remove the display cable located directly below the “M/B” cable by removing the tape and pulling the cable to the right while keeping it parallel to the laptop.

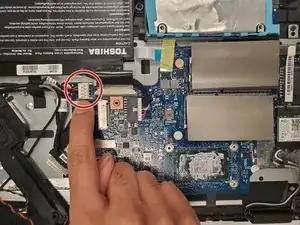

  13. ApnK2tSFEu5fMK2n

    • Remove the USB connector (white rectangle) located above the top left corner of the battery.

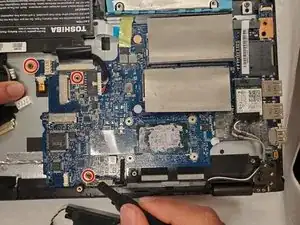

  14. jsxaVGWTtGFtsSWx

    • Use the Phillips #00 screwdriver to remove the three screws securing the motherboard to the laptop (located on rectangular/circular copper surfaces).

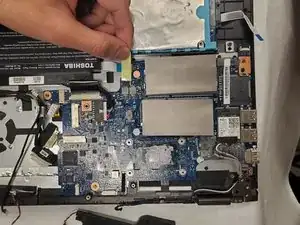

  15. Axfc6CtLNKmYETK2

    • Remove the yellow tape above the battery connector (located above top right corner of hard drive).

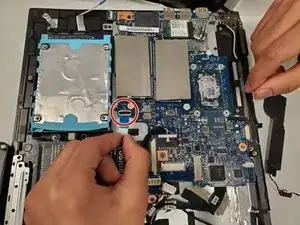

  16. SINiNIwgF5ZolFjM

    • Remove the connector by flipping up the black switch and pulling the blue tipped cable out.

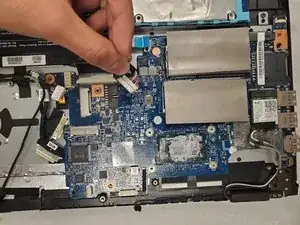

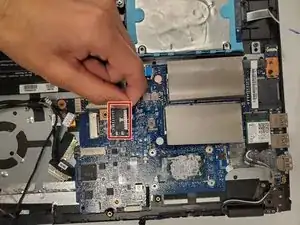

  17. sfKUKxYbAlphXuwQ
    sfKUKxYbAlphXuwQ
    3UowtCvYUrZrT2rW

    • Remove the second battery connector attached to motherboard (larger of the two).

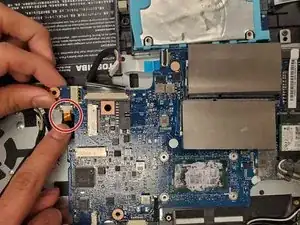

  18. OZiIZUe5wKYHjSRX

    • Remove the cable connecting the motherboard to the laptop (located on right side of motherboard).

  19. JZDDv1RgEqMAuMaA

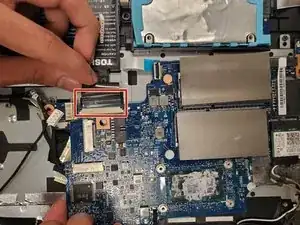

    • Pull up the black tab located to the left of previously removed connector cable.

  20. spy6XaIVN5n6rJnW

    • Remove the wireless adapter (white rectangle attached to surface of motherboard).

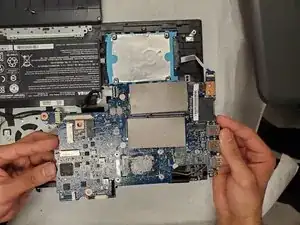

  21. TKeX6JdktoFBhXIO

    • Remove the motherboard from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
