Toshiba Satellite P75-A7100 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

Through this guide you will learn to replace the fan inside of your laptop. Make sure you have the proper tools in order to complete the repair. This kind of repair is usually done to fix the problem of your laptop overheating.

  1. cQAEpdQUUOpFNqMZ

    • Slide the tabs apart from each other.

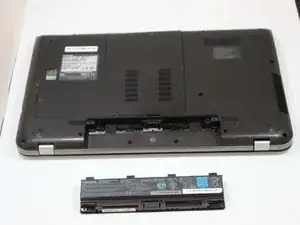

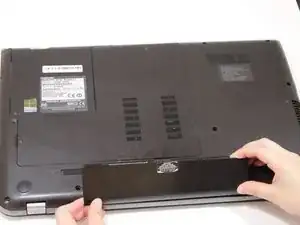

  2. WELwKShuOQwLV1cD
    WELwKShuOQwLV1cD
    HnnGovlLFr6eaF5Q

    • Lift the battery upwards and remove it from the device.

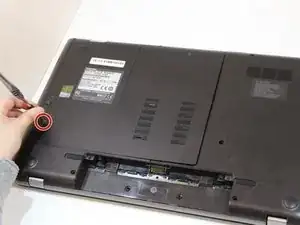

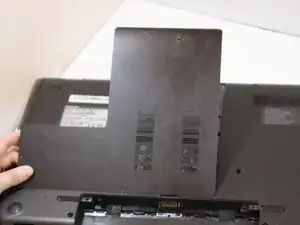

  3. UGKKVDwkAfKOaDdd
    UGKKVDwkAfKOaDdd
    lYXjpGxo6FIokcjw

    • Using a Phillips #1 screwdriver, remove the screw from the back cover.

    • Remove the back cover from the device.

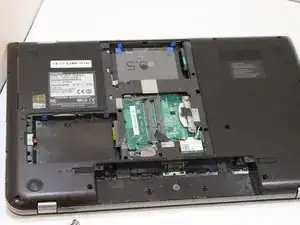

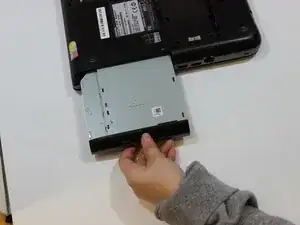

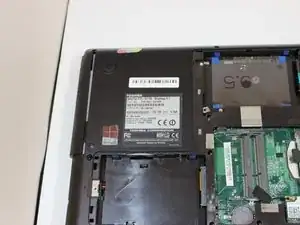

  4. ejm6xarUQhUNvJXR
    ejm6xarUQhUNvJXR
    iKoIROQYkeoWaxuH
    Hv3HdgRaAkyMpgt2

    • Remove the optical drive from the device.

  5. QEQZyb1EYZWGF4UT
    QEQZyb1EYZWGF4UT
    l2WIKN3eh3TvcuO5

    • Using a Phillips #1 screwdriver, unscrew the remaining screws that are visible on the laptop.

    • Remove the back cover from your device.

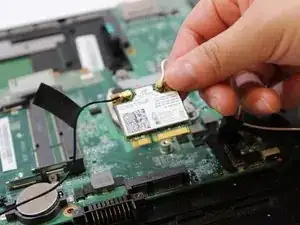

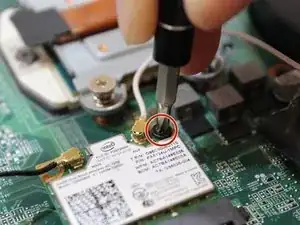

  6. UN3ICDIYCGGLu6Li
    UN3ICDIYCGGLu6Li
    VnTO2dHJCVTbxXZd
    GksVl6kHFZgQTInG

    • Using a Phillips #1 screwdriver, remove the screw connecting the Wi-Fi adapter to the motherboard.

    • Remove the Wi-Fi adapter from the device.

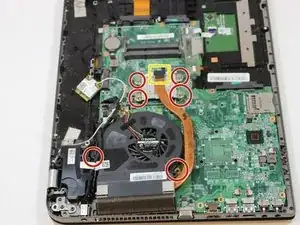

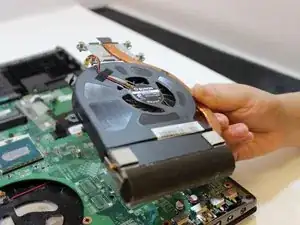

  7. SdOpbQtbGuPtjlKc
    SdOpbQtbGuPtjlKc
    lYHCAJyb6iJU2gYw

    • Using a Phillips #1 screwdriver, unscrew the 6 remaining screws attached to the fan.

    • Unplug the connector connecting the fan to the motherboard.

    • Remove the fan from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
