Toshiba Satellite P75-A7100 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

25 - 35 Minuten

Einleitung

In this guide, we will show you how to replace your computer's motherboard. It is important to replace your motherboard when your computer does not fully re-boot at all.

Werkzeuge

Schritt 1

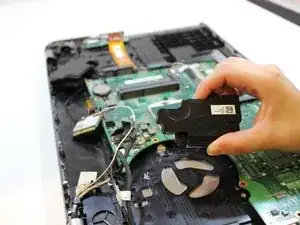

Using a Phillips #1 screwdriver, unscrew the 6 remaining screws attached to the fan.
Unplug the connector connecting the fan to the motherboard.
Remove the fan from the device.

Schritt 2

Take out all remaining screws in the motherboard.

Schritt 3

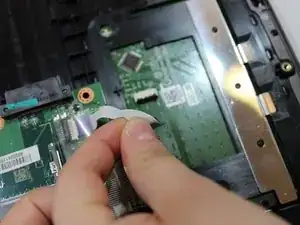

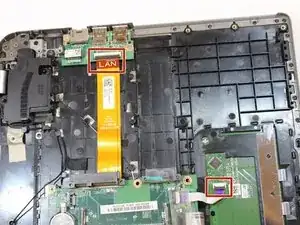

Disconnect the purple and orange ZIF connectors from the motherboard.

Schritt 4

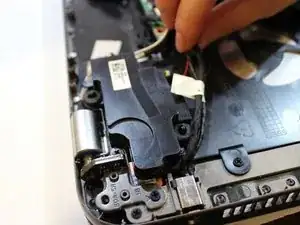

Remove cartridges from laptop by lifting them up.

Schritt 5

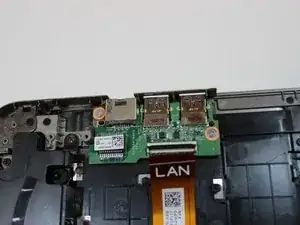

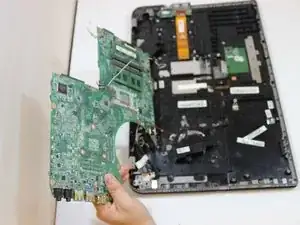

Disconnect all wires from the motherboard and replace motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
