Toshiba Satellite P755-EZ1511D Laptop Display Assembly Replacement

Geschrieben von: Jacob Volcke
  • Kommentare: 0
Toshiba Satellite P755-EZ1511D Laptop Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 - 25 Minuten

Einleitung

  1. KG2VJFCVHvSly2r1

    • First flip the device over so that the back side is facing upwards

  2. s1rvkq5jtoP1SdnP

    • Push the two sliders toward the edge of the laptop.

    • Remove the battery.

  3. x5EAx6qiS4Qa6l5M

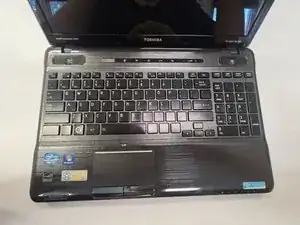

    • Open the lid.

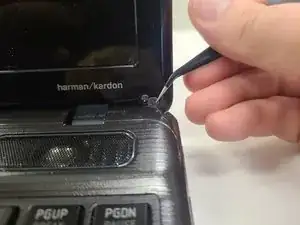

  4. lbSKysTJQIFN4oJt
    lbSKysTJQIFN4oJt
    TSpqLJ1mlWPEFfNP
    hVOVchfBsKOrBiCX

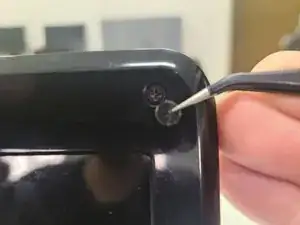

    • Remove the four screw covers in each of the four corners of the screen.

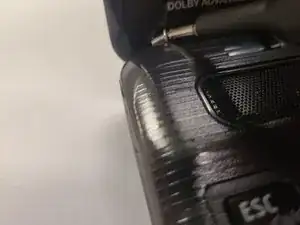

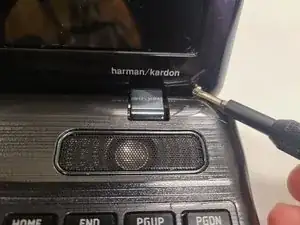

  5. IP4fVjtL15JbPMm2
    IP4fVjtL15JbPMm2
    VLHWnK2phpsHICHP
    C3D2QxhpRHtS2RC2

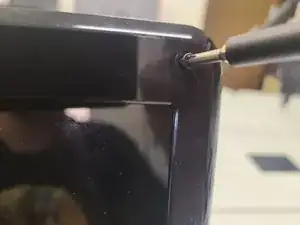

    • Remove the 4 screws in each of the 4 corners.

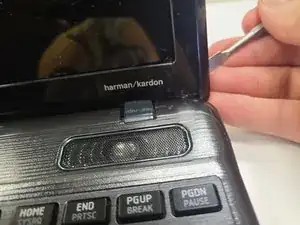

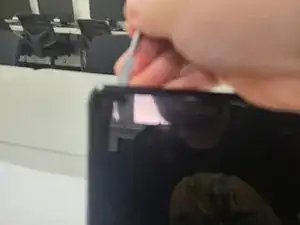

  6. BCBXLSFBXYVNfHjJ
    BCBXLSFBXYVNfHjJ
    AnJX6DGP2oMvIhOR
    R6xFsSCKGxMSiYm5

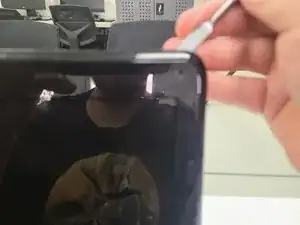

    • Take your prying tool and proceed to pry the screen cover off and set to the side.

  7. sI1A3NMwBXjMtckq

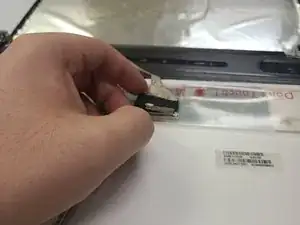

    • Disconnect the wire from the camera and the backside of the display assembly.

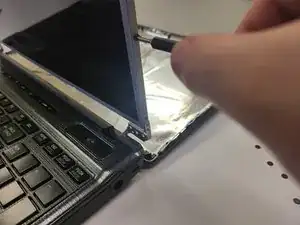

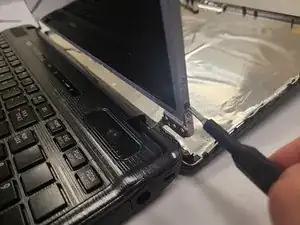

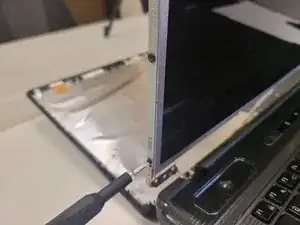

  8. Hlxfi42FLQFcPqFJ
    Hlxfi42FLQFcPqFJ
    ZrtLuUK4tH2ocTok
    6W3tXRdnsZPMSLaQ

    • Remove the 6 screws holding the display assembly and holding brackets together.

Abschluss

To reassemble your device, follow these instructions in reverse order.
