Einleitung

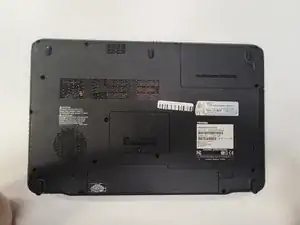

  1. KG2VJFCVHvSly2r1
    • First flip the device over so that the back side is facing upwards

  2. s1rvkq5jtoP1SdnP
    • Push the two sliders toward the edge of the laptop.

    • Remove the battery.

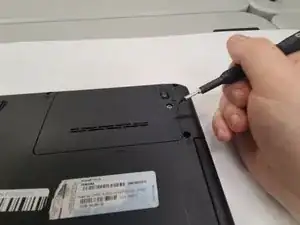

  3. yeReFA2EdbGeFFyK
    • First, remove the screw holding the hard drive cover in place.

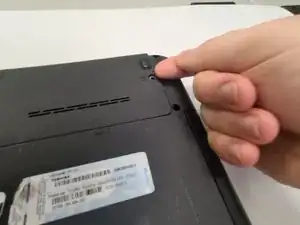

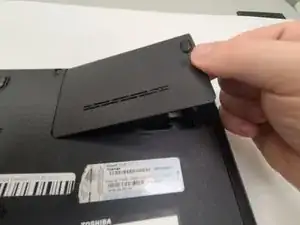

  4. GMbLcBGCm1OIRKff
    GMbLcBGCm1OIRKff
    WOhxW2aakdmuRCsD
    5uTuLwSqxqr5tPp3
    • Lift the cover and set it aside.

  5. i3fYZCTHowEptJC2

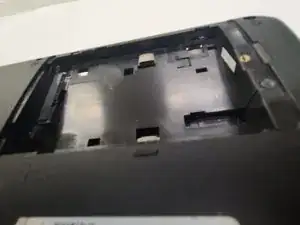

    • Remove the hard drive.

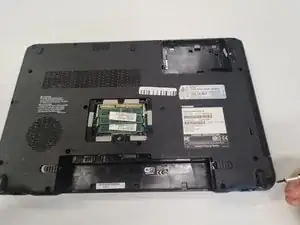

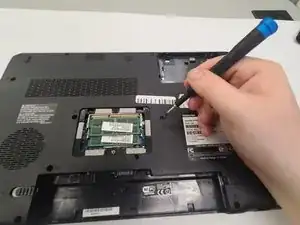

  6. PFVOyPGcNLCfEd41
    PFVOyPGcNLCfEd41
    pC26DuH1lAw1bdcA
    pJsUSRtTLdSPqb5c

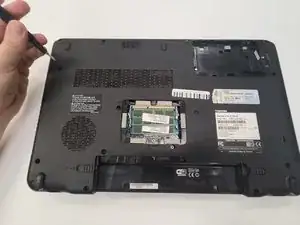

    • Remove all of the screws labeled F8 from the backside of the device.

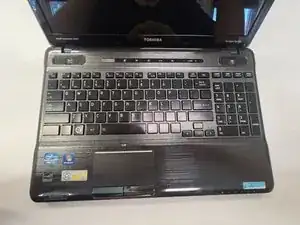

  7. NyfHFq1E6yVVLqLE
    NyfHFq1E6yVVLqLE
    SS4e6MmieXFFEKQv
    q2jqO2grfRAAGbUu

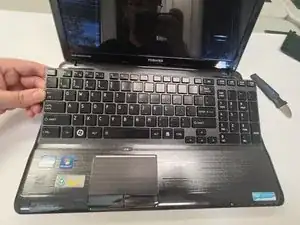

    • Flip the device over and open it up.

    • Using your pry tool begin to pop the keyboard upwards starting from the side closest to the screen. You will hear an audible "pop" sound.

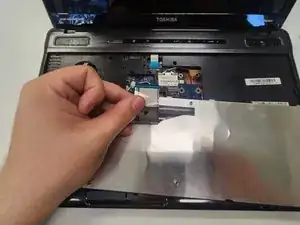

  8. 5dkeUOVocirm6kYd
    5dkeUOVocirm6kYd
    LGLCp3DcTsiDUdAG
    BtK5QFIZJ2yUTyKe
    • After popping the keyboard off you need to disconnect the keyboard from the motherboard.

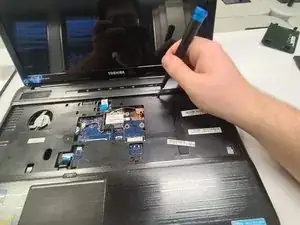

  9. TVeybFkGtYiwkgQM
    TVeybFkGtYiwkgQM
    QqG1WXWLOvT5Suxm

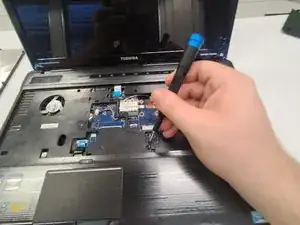

    • Remove the two screws labeled F8 in the shown places.

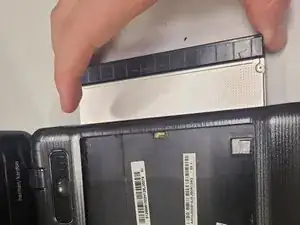

  10. Y1UNhkC1NQEDNYlE
    • Remove the optical drive from the device. Just pull it out.

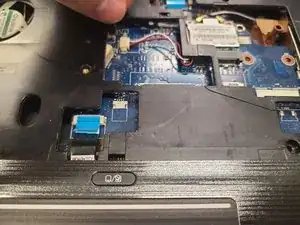

  11. 2jA6LufEUgk4ByTt
    2jA6LufEUgk4ByTt
    RKDYjhIIQAwrKYrb

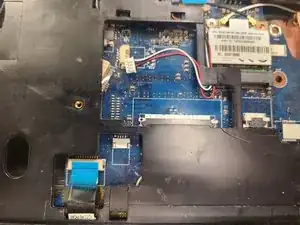

    • The next step is to unplug the speakers from the motherboard. The wire shown is the speaker wire.

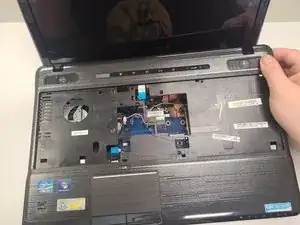

  12. GWx3dK3bXwNUXu1L
    GWx3dK3bXwNUXu1L
    6aL4bcPAOkQL2hpB
    fVlW1iILQr2UmxWF

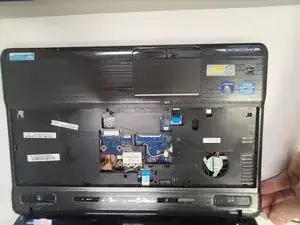

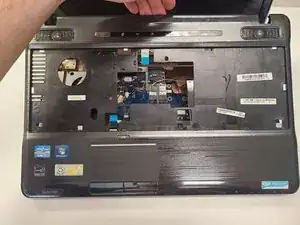

    • Next, take your pry tool again and start to lift around the edge of the device. Once you get it lifted enough, use your hands to pop the top panel of the base of the device.

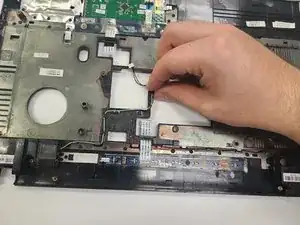

  13. aN2ZIJxmBItUmVXD
    aN2ZIJxmBItUmVXD
    xeTN1CFwJtZ1MTD6
    • Next, remove the wires from the the small clips holding them in place.

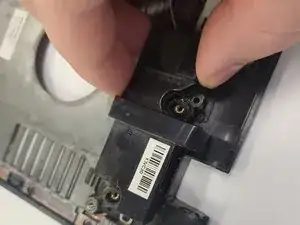

  14. bvCyFsEwjEuKCr4Y
    bvCyFsEwjEuKCr4Y
    XajSGxP4CP6oNk6d
    FoE1A2wc2YfQxiZu

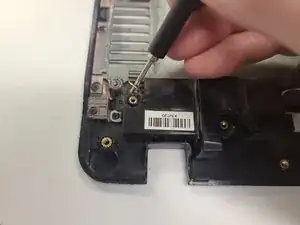

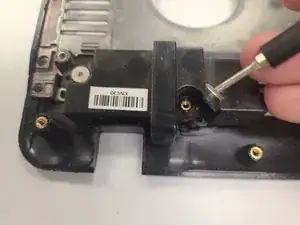

    • Lastly, remove the two screws holding the speaker in place.

    • After doing that you will be able to just lift up on the speaker to remove it.

    • Repeat Steps 8 and 9 for the other speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
