Toshiba Satellite P855-S5102 CPU Cooling Fan Replacement

Geschrieben von: Brandon McGuffey

Kommentare: 0

Toshiba Satellite P855-S5102 CPU Cooling Fan Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

1 Stunde

Einleitung

The CPU Cooling Fan hinders the CPU from overheating, potentially causing your computer to crash. Below are specific instructions to remove the CPU Cooling Fan.

Werkzeuge

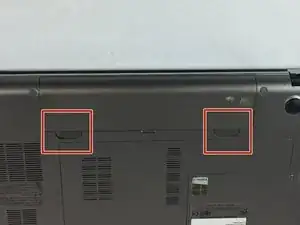

Schritt 1

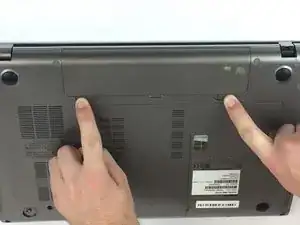

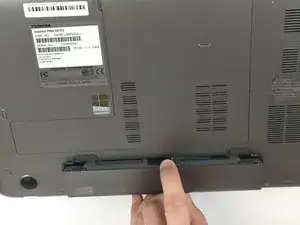

Push the locking tabs away from each other.

Schritt 2

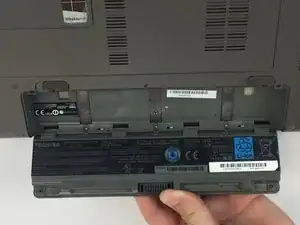

Pull up on the battery to remove.

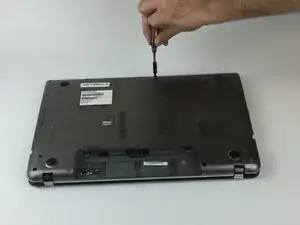

Schritt 3

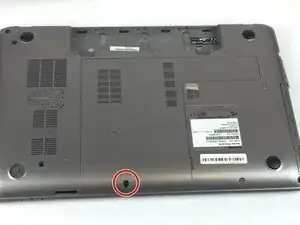

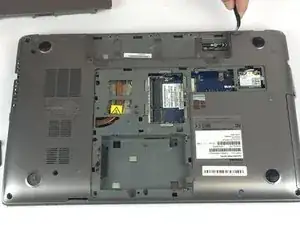

Remove the 3mm Phillips #0 screw from the cover.

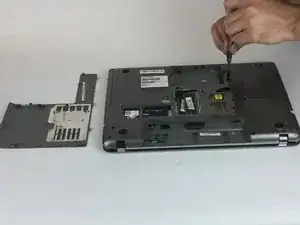

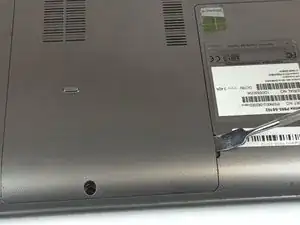

Schritt 4

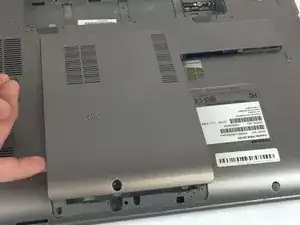

Use a plastic opening tool to lift up the cover and remove by hand.

Schritt 5

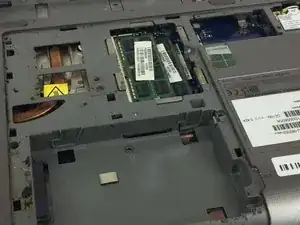

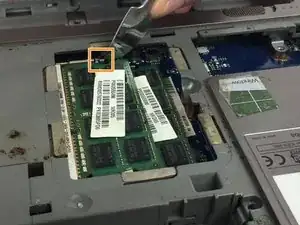

Two clips secure the RAM module in place, one on each side. Using your fingers, spread the clips away from the RAM module. 
When released, the RAM module will pop up at a slight angle.

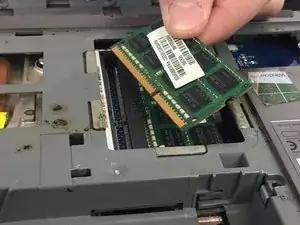

 Lift the RAM module to an angle of about 30 degrees and slide it out.

Schritt 6

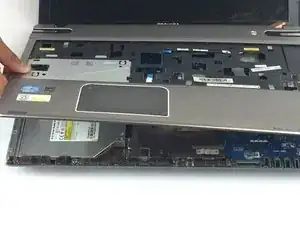

Use a plastic opening tool to pry up the keyboard cover.

Schritt 7

Use a plastic opening tool to pry up the keyboard.

Schritt 8

Lay the keyboard upright against the screen.

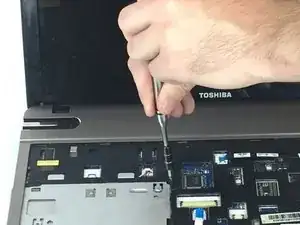

Use a spudger to flip up the retaining flap on the keyboard ribbon cable ZIF socket.
Remove the ribbon cable from the socket.

Schritt 9

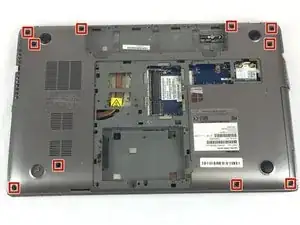

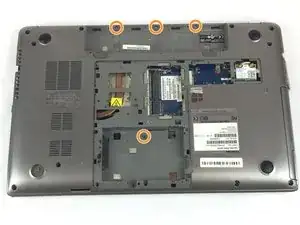

Use a set of small tweezers to pull the 10 rubber caps out of the back panel.
Each rubber cap will only fit in the holes they came out of so keep track of which caps go where. If you lose track, there are identification letters and numbers on each cap.
