Toshiba Satellite P855-S5102 Keyboard Replacement

Geschrieben von: Benson Smith
  • Kommentare: 1
Toshiba Satellite P855-S5102 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

The keyboard is the part of the computer that lets you enter data into it. If the keyboard is sticking or not functioning properly it will be hard to enter data. Below are a few steps on how to remove the keyboard.

  1. eWIMXwuJDcJtaBVE
    eWIMXwuJDcJtaBVE
    FPMCFEfEWL5iyQaT

    • Use a plastic opening tool to pry up the keyboard cover.

  2. gXkeFDIYMsC4ST6w
    gXkeFDIYMsC4ST6w
    INVhyilvTHRjJdwF

    • Use a plastic opening tool to pry up the keyboard.

  3. QSQiLu2KI2eYpneR
    QSQiLu2KI2eYpneR
    TEOCk5K3e3VpiWAZ
    DRGdQxkHSPkO61VC

    • Lay the keyboard upright against the screen.

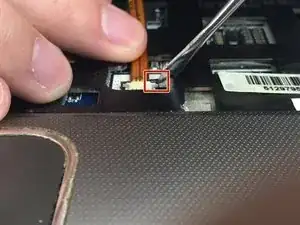

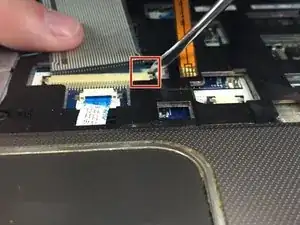

    • Use a spudger to flip up the retaining flap on the keyboard ribbon cable ZIF socket.

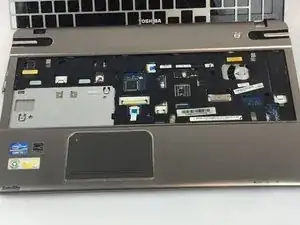

    • Remove the ribbon cable from the socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Benson Smith

Mitglied seit: 25/01/18

351 Reputation

Ein Kommentar

Proceeding this way you will get to break all seals that join that “cover“ to the rest of the keyboard assembly, rendering it unusable if you were not replacing it (in the “step 2“ photos you get to see all the broken pins where the joined parts used to be). In fact, you have to proceed from the other side and remove the cover from under the computer, there you’ll find some small tabs towards the touchpad end of things, you gently pry each tab while loosening that side of the keyboard and it rises up. Be careful not to break the flex circuit that joins it to the mainboard in the process.

Kenneth -
