This guide will help the user replace the disk drive on the Toshiba Satellite P855-S5312 . Reasons for replacement include jammed or unresponsive disk. Philips size 0, Tools required for task are phillips size 0 Screwdriver, Plastic Opening Tools, and Pointed edge tool.
-
-
Turn laptop upside down with the spine facing towards you and locate the two tabs on the top of the back panel.
-
Move the sliders to the left and right to release the tabs holding the battery in.
-
While the tabs are pushed outwards, remove the battery from the device.
-
-
-

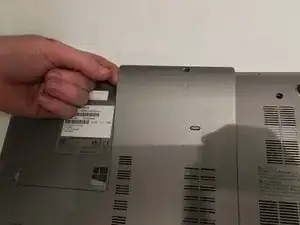

Once laptop is turned over with the spine facing you, locate the large L shape panel.
-

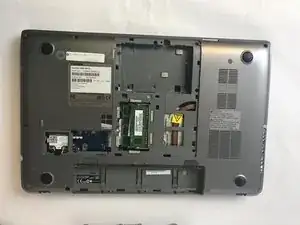

Using a Philips #0 screwdriver unscrew the 1.5mm screw towards the bottom of the laptop.
-
-
-

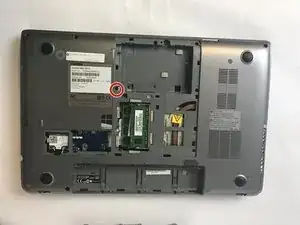

Using a Philips #0 screwdriver, unscrew the 1.5mm screw located near the left edge of the opening near the mother board.
-
-
-

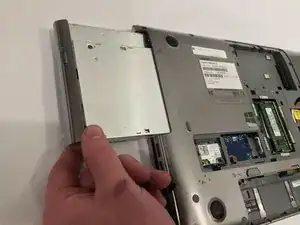

Flip your device over and rotate the side of the optical drive over to you.
-

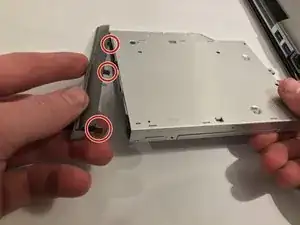

Unclip the clips on the side of the automatic release.
-

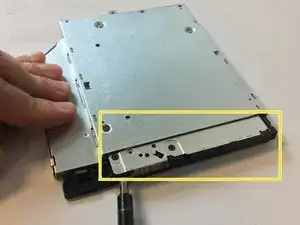

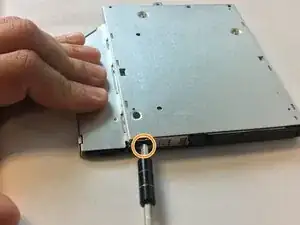

Use a paper clip or small needle tool to insert in the manual release located on the right of the automatic release button.
-

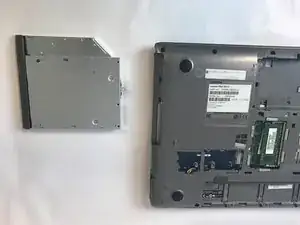

Once released slide the aluminum case out.
-
To reassemble your device, follow these instructions in reverse order.
