Einleitung

If you need to replace your keyboard on your own, here is an easy process on how to complete this task. All you need is a a new keyboard and a Phillips screwdriver. Be careful while replacing so you don't break anything internally. Now you are ready to get started.

  1. nFIoN6hJlpGIi26o
    • Unplug the charging cable from the laptop.

    • Turn off the laptop.

    • Turn the laptop over and locate the battery.

  2. XUJj44AYywYSXJxT
    XUJj44AYywYSXJxT
    JCbADdSm625M5Qdc
    2TFO1YSaBPH1PhjS
    • Push the small switch near the corner of the laptop to the unlocked position.

    • Push the bigger switch in the direction of the icon and pull the battery away from the laptop.

  3. xfnHU3I3U2ixiVFZ
    xfnHU3I3U2ixiVFZ
    CdqPWWEQSMJkNdkr

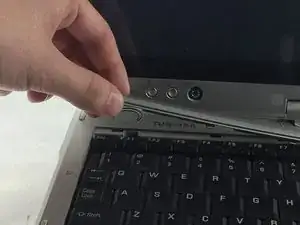

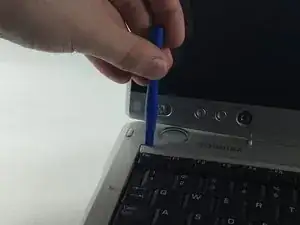

    • First, begin by removing the plastic cover that is located at the top of the keyboard. This can be pried off or just removed by hand by grabbing the plastic piece by the indent on either side and lifting up.

    • Be careful to avoid breaking the plastic.

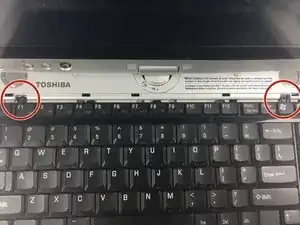

  4. AShx2Sw6GEEWY3Yl
    • Locate the two screws on each side.

  5. oshdoMbFMnNkJpb6
    oshdoMbFMnNkJpb6
    dknIZDbJyDVwvDrS

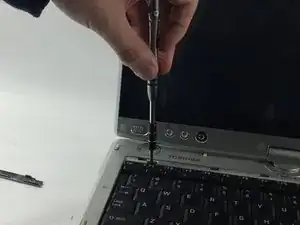

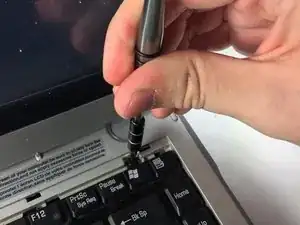

    • Remove the two screws with a phillips head screwdriver. Be careful not to lose the screws.

  6. fpBAepUN21FVVUeP
    fpBAepUN21FVVUeP
    vhMIDEwXJnPYSsFf

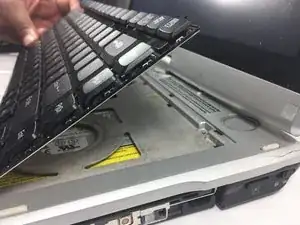

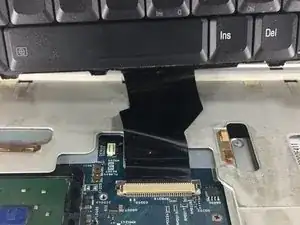

    • Lift the keyboard up to reveal the power plug.

  7. OWW4KYCM1hpSnNPT
    OWW4KYCM1hpSnNPT
    HoDtpudVEVwwHYZe

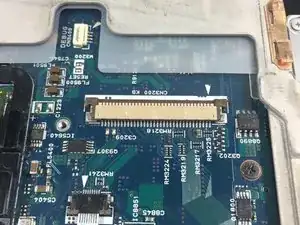

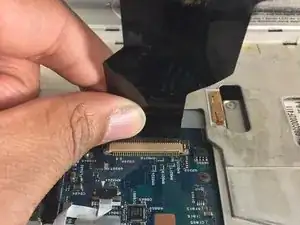

    • Disconnect the keyboard from the laptop by unplugging the power ribbon.

Abschluss

To reassemble your device, follow these instructions in reverse order.
