Einleitung
This guide can be used to locate, remove, and replace the hard drive on your Toshiba Satellite Radius P55W-B5112. This guide is very simple, and details one of the most common types of repairs for this type of computer.
-
-
Unplug your laptop from any source of power.
-
Lay your laptop on a soft, clean surface as shown.
-
Using the metal spudger, remove the two rubber grips on the bottom face of the laptop, located closest to the hinge.
-
-
-
Starting on the edge that is opposite the hinge, use the plastic opening tools to pry the back plate away from the computer.
-
Loosen the three non-hinge edges.
-
Leave a plastic opening tool in each corner to ensure that one side does not snap closed before you are done opening the others.
-
-
-
To loosen the back plate, lift it slightly and gently pull it away from the hinge.
-
Flip the back plate open towards the power button, but be sure to not pull on the ribbon cable that connects the back plate to the motherboard.
-
Use a plastic opening tool to detach the side of the ribbon cable connected to the computer by prying up gently on the small black lever at the point of attachment.
-
-
-
Use a plastic opening tool to lift the side of the battery that is closest to the long edge of the computer.
-
As you are pulling the battery away from the computer, unplug it from the side closest to the short edge of the computer.
-
-
-

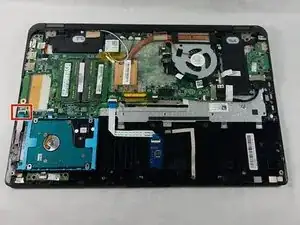

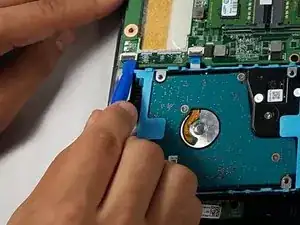

Use a plastic opening tool to detach the hard drive's ribbon cable from the computer. Gently lift the black lever at cable's point of attachment to the computer to release it.
-
-
-

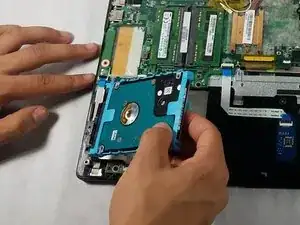

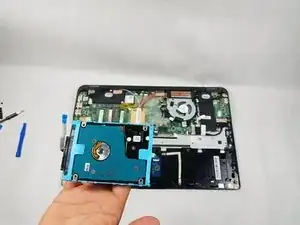

Lift the hard drive from the computer, starting with the edge adjacent to the empty battery slot
-
To reassemble your device, follow these instructions in reverse order.
