Toshiba Satellite Radius P55W-B5112 Screen Replacement

Geschrieben von: Mudassar Abbas Khan
  • Kommentare: 7
Toshiba Satellite Radius P55W-B5112 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide will help return your bubbly or malfunctioning screen back to its vibrant glory days.

  1. sDmFruoXlDUPVrOk
    sDmFruoXlDUPVrOk
    LS1kGgpKSEhZOvyY
    qDEyRg2xHCHnAZ3q

    • Unplug your laptop from any source of power.

    • Lay your laptop on a soft, clean surface as shown.

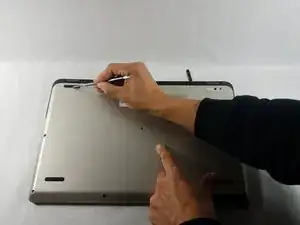

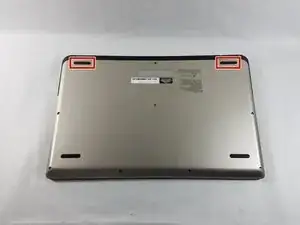

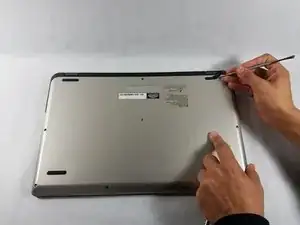

    • Using the metal spudger, remove the two rubber grips on the bottom face of the laptop, located closest to the hinge.

    • The grips may be brittle. Be careful when removing them with the metal spudger so as not to damage them.

  2. AgVKLyWlng41cKri
    AgVKLyWlng41cKri
    Ir5jjXVTPmFRiNIB
    6RMpAi1QtsMfdQrn

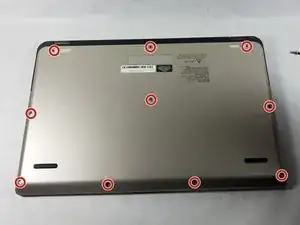

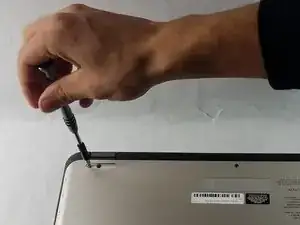

    • Remove the ten 5mm Phillips #0 screws that secure the back plate to the computer.

  3. vSbAH2tQsyMHmPjK
    vSbAH2tQsyMHmPjK
    fxXmXyeadcNLZSsh
    6AtinqE3ltauvHfn

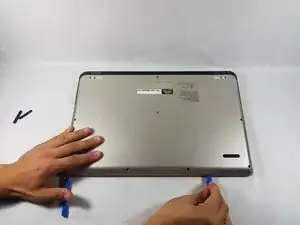

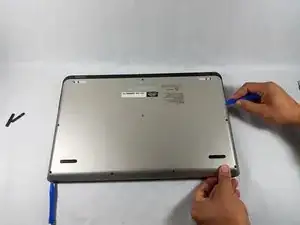

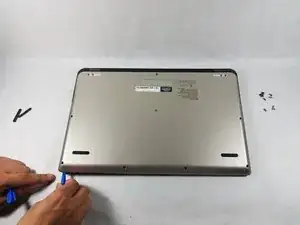

    • Starting on the edge that is opposite the hinge, use the plastic opening tools to pry the back plate away from the computer.

    • Loosen the three non-hinge edges.

    • Leave a plastic opening tool in each corner to ensure that one side does not snap closed before you are done opening the others.

    • DO NOT lift the back plate away from the computer; it is still connected to the motherboard.

  4. OjuwtJXAvTLUMJ5f
    OjuwtJXAvTLUMJ5f
    2ufHSAmNOuLqc6UJ
    fcrkBc4pYBjDWkcE

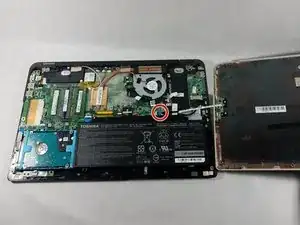

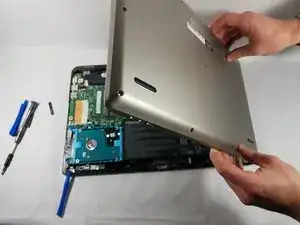

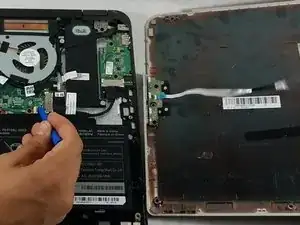

    • To loosen the back plate, lift it slightly and gently pull it away from the hinge.

    • Flip the back plate open towards the power button, but be sure to not pull on the ribbon cable that connects the back plate to the motherboard.

    • Use a plastic opening tool to detach the side of the ribbon cable connected to the computer by prying up gently on the small black lever at the point of attachment.

  5. WbAs1k15yQd6MULv
    WbAs1k15yQd6MULv
    tnAQvDNHASlG2mRK
    QbvSPjMgaOyCiKCI

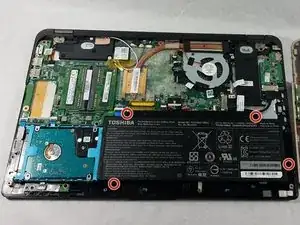

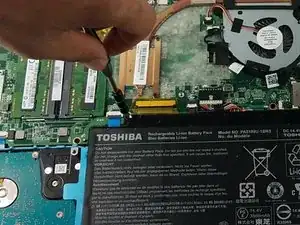

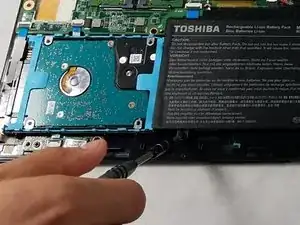

    • Remove the four 3mm Phillips #0 screws connecting the battery to the computer.

  6. IDOHTAbZnFoWoTcM
    IDOHTAbZnFoWoTcM
    XZOJkORpcgHeuwQa
    VdwnJlKjlxpom3oC

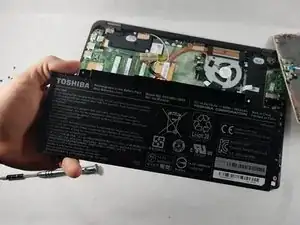

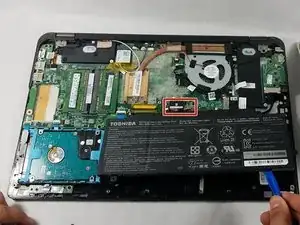

    • Use a plastic opening tool to lift the side of the battery that is closest to the long edge of the computer.

    • As you are pulling the battery away from the computer, unplug it from the side closest to the short edge of the computer.

    • There may be a lot of resistance when unplugging the battery. If there is, try to wiggle the male side of the plug back and forth as you remove it.

  7. UxeCUOShGgptw5sW
    UxeCUOShGgptw5sW
    2XRTKbsoknLxKKte
    OEpXJXoU4dgvS6xu

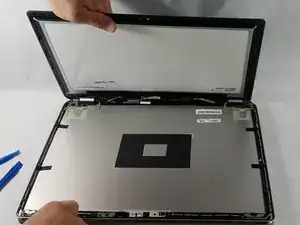

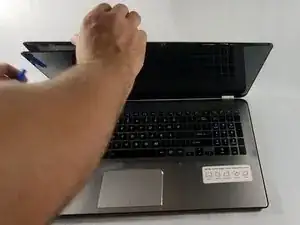

    • Use a plastic opening tool to pry the front panel away from the screen. First, work across the top edge of the screen assembly, corner to corner.

    • Pry the front panel away from the screen, leaving adjacent edges touching near the hinge of the laptop.

    • When separating the screen and front panel, it may be helpful to leave an opening tool in the corners so they do not snap closed.

  8. lV6MNlsThWRJRGAn
    lV6MNlsThWRJRGAn
    QOLfXC2rjjgqI3sg
    BrUlcAf5wkUYRfta

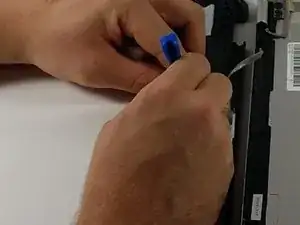

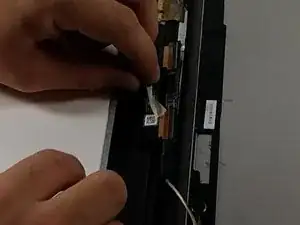

    • Using your fingers, or plastic opening tools, remove the tape from the two ribbon cables connected by a silicon strip.

    • Use plastic opening tools to pry up on the black lever at the point of attachment of each of the two ribbon cables to the silicon strip.

    • Pull the silicon strip away from the ribbon cables to disconnect it.

  9. NaDVGJ1Irq2JYTxY
    NaDVGJ1Irq2JYTxY
    5cmV3AsfVqXo4WNn
    TpGKdTOhr3RPfbFQ

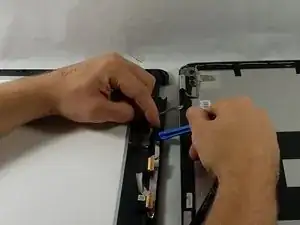

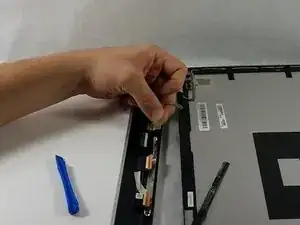

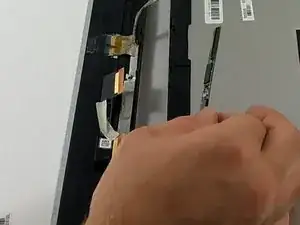

    • Using your fingers, or plastic opening tools, peel back the tape from the top and bottom of the point of attachment of the remaining wire connecting the screen to the laptop.

    • Grip the wire close to the point of attachment while holding back the loosened pieces of tape.

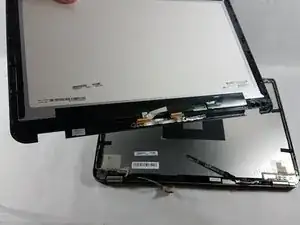

    • Firmly pull away from the screen, wiggling the wire back and forth slightly.

    • This wire may be stuck firmly to the screen. If so, peel it away carefully with the help of a plastic opening tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
