Einleitung
This guide details how to replace the hard drive of a Toshiba Satellite S50-B laptop. You will need a Phillips 0 screwdriver and a plastic opening tool for this replacement.
Werkzeuge
Ersatzteile
-
-

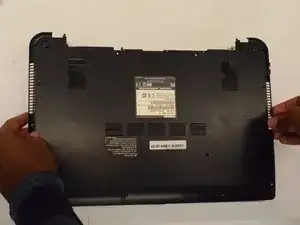

Place thumbs on corners of the battery. Pinch the battery between the thumb and index finger and pull.
-
-
-

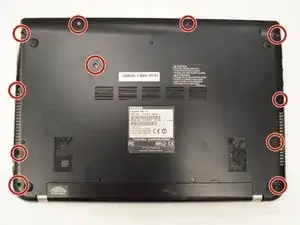

Locate the 12 screws on the bottom of the device. Unscrew using a Phillips screwdriver, and set screws aside.
-

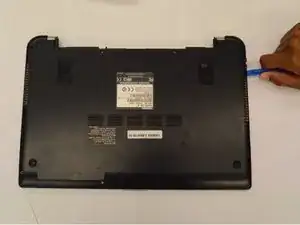

Use a plastic opening tool to remove bottom casing.
-
-
-

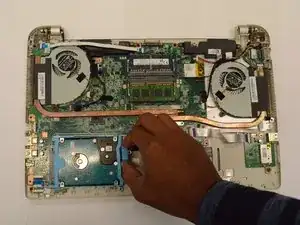

Use the plastic casing over the hard drive to lift the hard drive up.
-

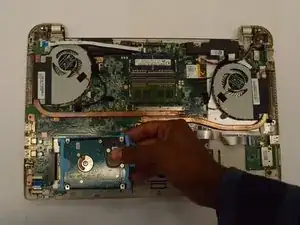

Once hard drive is slightly lifted up, make sure the laptop is in correct orientation with the battery away from you, and pull the hard drive towards right.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
