Toshiba Satellite S55t-A5389 Processor Replacement

Geschrieben von: William Mazanec
  • Kommentare: 0
Toshiba Satellite S55t-A5389 Processor Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

If your laptop no longer runs as well as it did, and has become slow, unresponsive, or does not power on. You're processor may be at fault and replacing it could be an option. However before this is done, be sure to check your laptop for any viruses, or any other issues that it may have.

  1. 4BcRn2NxfcnHo1o2

    • Remove the fourteen 5mm Phillips #0 screws from the bottom of the laptop.

  2. BoA5tBCXTDrVVgdv

    • Using the plastic prying tools, go around the edge of the bottom of the laptop to release the cover.

  3. NN1iSgfmVxw5My6K
    NN1iSgfmVxw5My6K
    Yc6bf1DBKnsRNXmZ
    Rowuoby4ehjFMXg5

    • Remove the four 5mm Phillips #0 screws from the battery.

    • Unplug the battery from the motherboard.

    • Remove the battery from the laptop.

  4. c3Rr461JqAvqDnPB

    • Remove the two 5mm Phillips #0 screws from the fan.

  5. JeAahx1dTRIZQgBo

    • Disconnect the fan from the motherboard.

  6. M33VxnEtAVDCKSn5

    • Remove the four 5mm Phillips #0 screws from the heat pipe.

    • Remove the fan and heat pipe from the laptop.

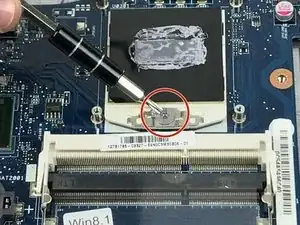

  7. SS3224rr5Bl2pu5a

    • Rotate the lock 90 degrees using a Torx T8 in order to remove the processor.

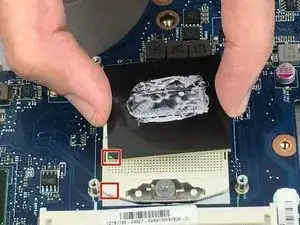

  8. DgvVsniRulMKl1FH

    • Carefully lift up the processor.

    • When putting the new processor on, make sure that the little arrow on the processor matches with the arrow on the socket

Abschluss

To reassemble your device, follow these instructions in reverse order.
