If you find that your laptop no longer connects to a Wi-Fi connection, or the computer runs very well but connecting to the internet is sluggish. It may be time to replace the wireless network card.

  1. 4BcRn2NxfcnHo1o2

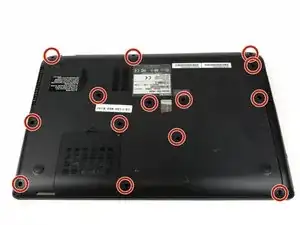

    • Remove the fourteen 5mm Phillips #0 screws from the bottom of the laptop.

  2. BoA5tBCXTDrVVgdv

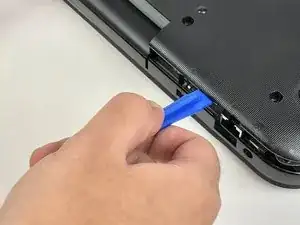

    • Using the plastic prying tools, go around the edge of the bottom of the laptop to release the cover.

  3. NN1iSgfmVxw5My6K
    NN1iSgfmVxw5My6K
    Yc6bf1DBKnsRNXmZ
    Rowuoby4ehjFMXg5

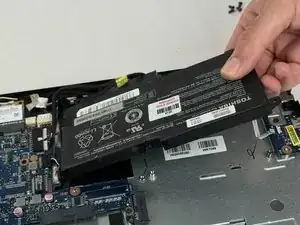

    • Remove the four 5mm Phillips #0 screws from the battery.

    • Unplug the battery from the motherboard.

    • Remove the battery from the laptop.

  4. nPLCwcF5WOCb1rYp

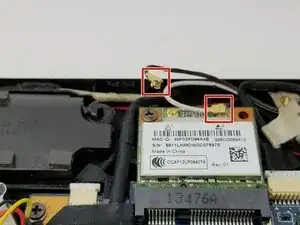

    • Disconnect the black and white antenna wires from the wifi card.

  5. JFZUSedHyQ2iP4Ye

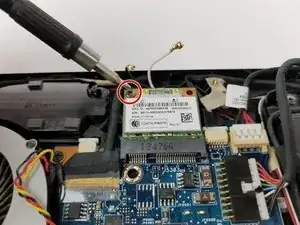

    • Remove the 3mm Phillips #0 screw from the wifi card.

    • Remove the card from its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
