Toshiba Satellite S55t-C5225 Optical Disk Drive Replacement

Geschrieben von: Nicholas Costa
  • Kommentare: 1
Toshiba Satellite S55t-C5225 Optical Disk Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 15 Minuten

Einleitung

If your Toshiba S55t-C5225 can no longer read CD’s/DVD’s or will not open then your optical disk drive is most likely not operational and needs to be replaced. The following steps are a guide to help the user in replacing the optical disk drive.

  1. nNgI24ALODqr3MeV

    • Shut down the computer and disconnect all cables

    • Flip the computer over so the bottom is facing up.

  2. hHXmJVMdcN3X5bio
    hHXmJVMdcN3X5bio
    AUvKyKK5TcFQwGF4

    • Remove the two 7.0 mm Phillips #0 screws that hold the battery in place.

  3. bnDc2yKNs5ChPPcD
    bnDc2yKNs5ChPPcD
    ZUPmRgMBtUyruw1W

    • Carefully remove the battery by wedging a plastic opening tool in-between the battery and back cover.

  4. cep3TxBOgKKvUyQc
    cep3TxBOgKKvUyQc
    SuEg5rFfT1MF53UI

    • Remove the eleven 7.0 mm Phillips #0 screws that secure the back cover.

    Hi, do you maybe have any instructions on which screw Goes where? I have it all mixed up..

    unatuu -

  5. fngf2qHS4gFASWRn
    fngf2qHS4gFASWRn
    HAJWZIYOVQFhLjUJ

    • Wedge the tip of a plastic opening tool between the back cover and metal frame.

    • Twist the plastic tool, while wedged, to release the retaining tabs from the frame.

    • Repeat these steps around the laptop to release all retaining tabs.

  6. uFqAbnBtNtOQqxOL
    uFqAbnBtNtOQqxOL
    EgVTVCuQPmpXfNqN

    • Once all retaining tabs are released, pull up on the cover to remove.

  7. 1hSXSGtsYgr5SnD2
    1hSXSGtsYgr5SnD2
    tKTJhrW3LogHEC2i

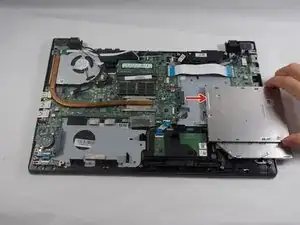

    • Carefully slide the optical disk drive to the right to remove from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
