Toshiba Satellite S55t-C5225 RAM Replacement

Geschrieben von: Javien Delgado
  • Kommentare: 1
Toshiba Satellite S55t-C5225 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 15 Minuten

Einleitung

If your Toshiba Satellite S55t-C5225 shuts down abruptly, performance is low, or fails to install new programs then the RAM most likely needs to be replaced. The following guide will walk the user through replacing the RAM in your Toshiba Satellite S55t-C5225.

  1. nNgI24ALODqr3MeV

    • Shut down the computer and disconnect all cables

    • Flip the computer over so the bottom is facing up.

  2. hHXmJVMdcN3X5bio
    hHXmJVMdcN3X5bio
    AUvKyKK5TcFQwGF4

    • Remove the two 7.0 mm Phillips #0 screws that hold the battery in place.

  3. bnDc2yKNs5ChPPcD
    bnDc2yKNs5ChPPcD
    ZUPmRgMBtUyruw1W

    • Carefully remove the battery by wedging a plastic opening tool in-between the battery and back cover.

  4. cep3TxBOgKKvUyQc
    cep3TxBOgKKvUyQc
    SuEg5rFfT1MF53UI

    • Remove the eleven 7.0 mm Phillips #0 screws that secure the back cover.

    Hi, do you maybe have any instructions on which screw Goes where? I have it all mixed up..

    unatuu -

  5. fngf2qHS4gFASWRn
    fngf2qHS4gFASWRn
    HAJWZIYOVQFhLjUJ

    • Wedge the tip of a plastic opening tool between the back cover and metal frame.

    • Twist the plastic tool, while wedged, to release the retaining tabs from the frame.

    • Repeat these steps around the laptop to release all retaining tabs.

  6. uFqAbnBtNtOQqxOL
    uFqAbnBtNtOQqxOL
    EgVTVCuQPmpXfNqN

    • Once all retaining tabs are released, pull up on the cover to remove.

  7. blPM52iBH5kCRXAV
    blPM52iBH5kCRXAV
    UKgiUCMmN35kINMW
    3iGc5UTX2GmZXMyC

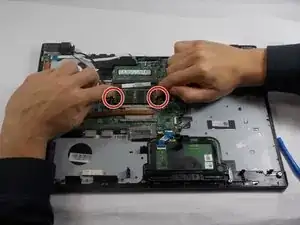

    • Press on the metals clips on the outside of the RAM to release it.

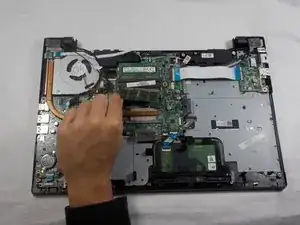

    • Gently pull out the first RAM stick. Repeat the process for the other RAM stick.

Abschluss

To reassemble your device, follow these instructions in reverse order.
