Einleitung
If your Toshiba Satellite S55t-C5225 is experiencing quality errors in the screen or visible damage then the screen might need to be replaced. This replacement guide should be followed if you are experiencing the problems mentioned above.
Werkzeuge
-
-

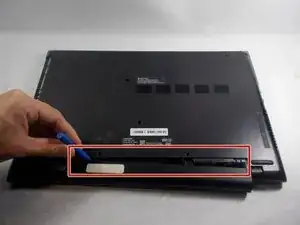

Carefully remove the battery by wedging a plastic opening tool in-between the battery and back cover.
-
-
-

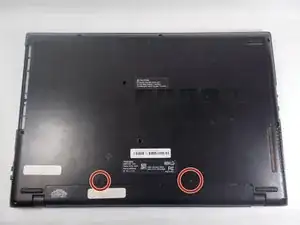

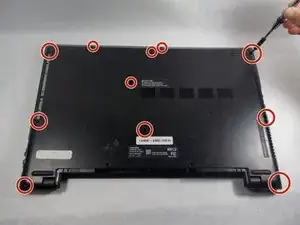

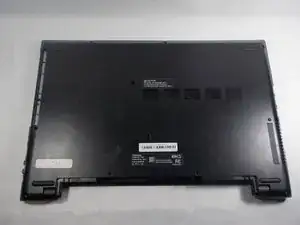

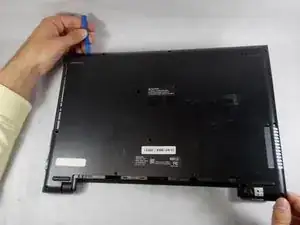

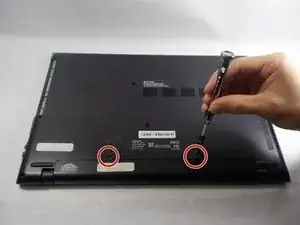

Wedge the tip of a plastic opening tool between the back cover and metal frame.
-
Twist the plastic tool, while wedged, to release the retaining tabs from the frame.
-

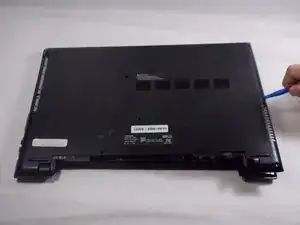

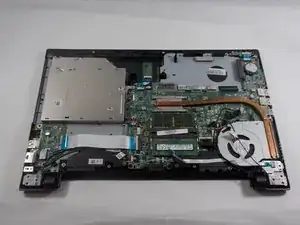

Repeat these steps around the laptop to release all retaining tabs.
-
-
-

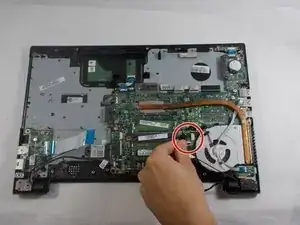

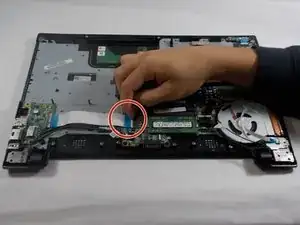

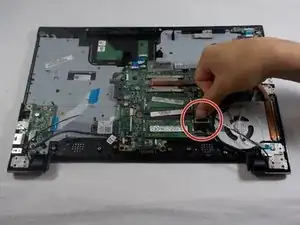

Disconnect the power button strip by flipping up the white plastic clamp that connects it to the motherboard.
-
Pull the ribbon wire out from plastic clamp.
-
-
-

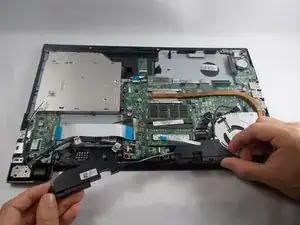

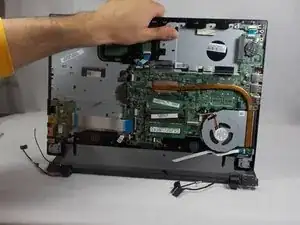

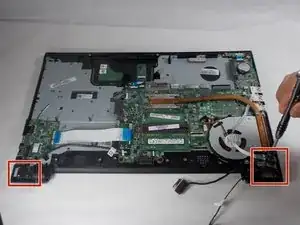

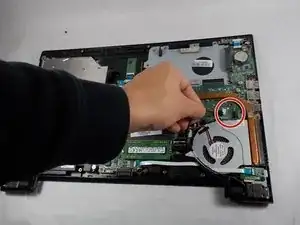

Follow the black wire that connects the speakers to the motherboard.
-

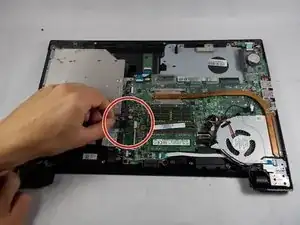

Pull the wire out from its socket to disconnect the speakers from the motherboard.
-
-
-

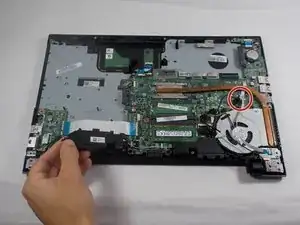

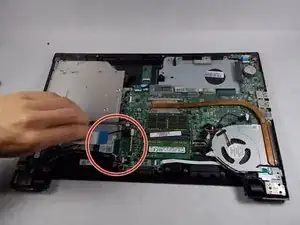

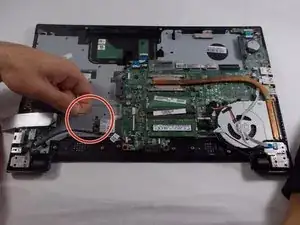

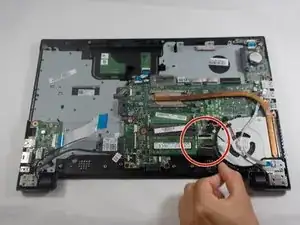

Disconnect LAN from the motherboard power wire. Pop up the white clamp that holds it in place, then pull the wire out.
-
-
-

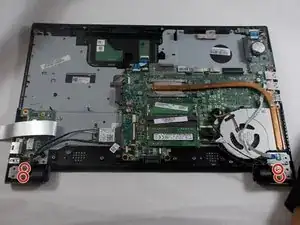

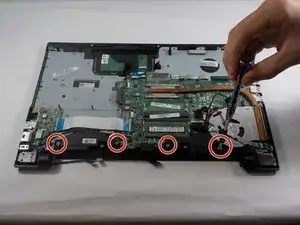

Remove the four 7.0 mm Phillips #0 screws on both ends of the laptop that attach the screen assembly to the laptop.
-
-
-

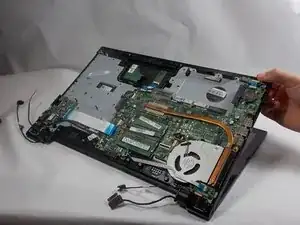

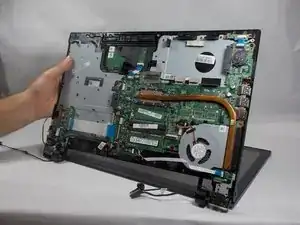

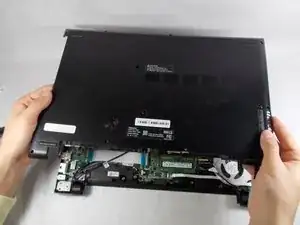

Slowly open laptop while the bottom is facing up. Begin to separate the bottom of laptop from the screen assembly brackets.
-
Remove the screen assembly.
-
To reassemble your device, follow these instructions in reverse order.
