Einleitung

This Replacement guide will be teaching you step by step how to replace the hard drive on you Toshiba Satellite S75D-A7346

  1. lANFVjd21guUFL1i
    lANFVjd21guUFL1i
    bD55HYin6HVopfNO

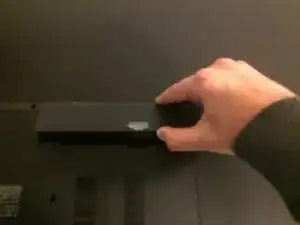

    • First we have to take out the battery

    • Pull the switch on the left to the left

    • then hold the switch on the right to the right direction

    • then pull up the bttery from the point inbetween the 2 switches

  2. SmSXKxSFUsl3xmaN
    SmSXKxSFUsl3xmaN
    6sTLYjZw3pVmudVT

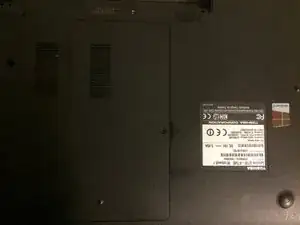

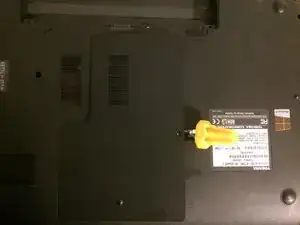

    • Unscrew the screw located next to the information sticker

    • Then get a screw driver or prier to gently pry the covering plate

  3. c1M1rDqTrGApL3AI
    c1M1rDqTrGApL3AI
    4PhymTrSYBbffFJC

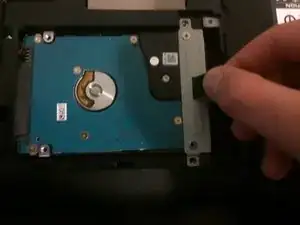

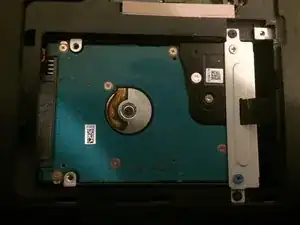

    • Unscrew the black screws and then pull the black tab to the right

    • Then lift it out and place it somewhere

  4. MJ5CcIYuhLCfsu44
    MJ5CcIYuhLCfsu44
    nUOAvIJdHuuNWNZC

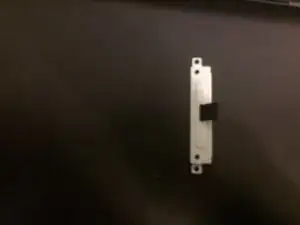

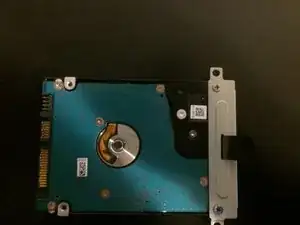

    • Unscrew the silver screws and move the hard drive somewhere else

  5. No4AWLVNdDOKwGcL

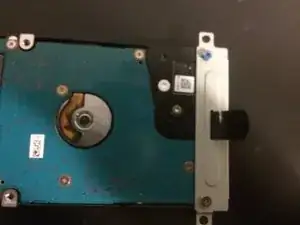

    • Screw the silver screws into the screw slots furthest away from the connectors

    • Note: This computer is only compatible with 2.5 inch SATA 3Gbps

  6. fZpHYueZyfKxyeGq
    fZpHYueZyfKxyeGq
    hiFKrmSglG3t3FbK

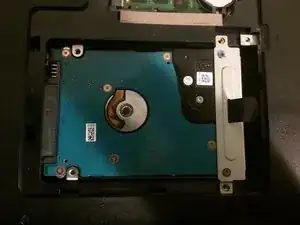

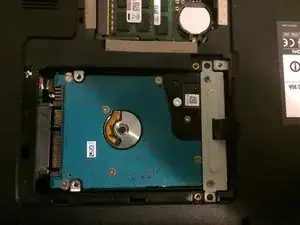

    • Put the Hard Drive in slot (make sure the connectors are on the same side of the connectors

    • Push the Hard Driver into the connector and screw the black screws in

  7. nZWLnehYFcgCEE4T
    nZWLnehYFcgCEE4T
    AybhJtirSGWOiHUe

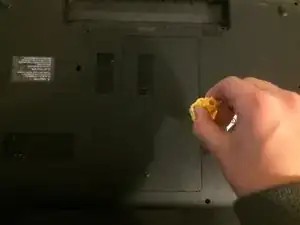

    • Put on the backplate and put pressure arround the edges of the blackplate so it stays flat with the case

    • Then screw in the screw next to the information sticker

  8. XSsbGKHlYCKoMjbM
    XSsbGKHlYCKoMjbM
    qDxsrC2lKq2KbKd3
    l6vxERpbOm2TJxux

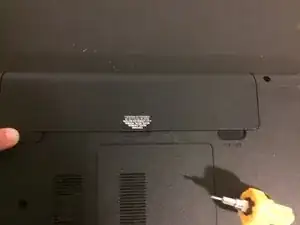

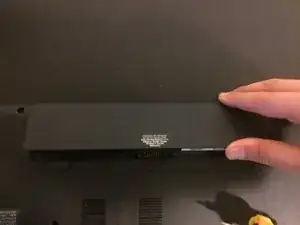

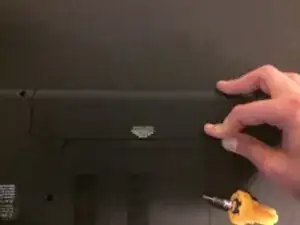

    • Place the battery in the slot

    • Then hold the right switch to the right and push the battery in, then release the switch.

    • move the left switch to the right

  9. JRKQJ1ZKWOMsUWED

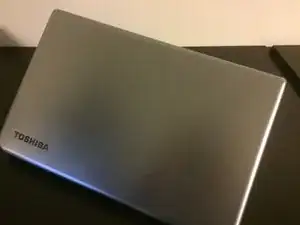

    • You have know finished the replacement

Abschluss

To reassemble your device, follow these instructions in reverse order.
