Toshiba Satellite U405D-S2902 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

Sometimes the hard drive is corrupt, or you want to install a new one. This guide will show you how to take out a hard drive and replace.

  1. qSrTJgEecUJ2JXQq
    qSrTJgEecUJ2JXQq
    H5CtcCS1WsFuyFp3

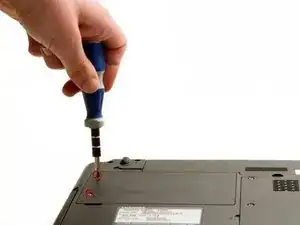

    • Lay laptop on it's face and remove the two #1 Phillips screws in the back of the black plastic panel with a raised center.

    • The screws can not be removed from the panel, so loosen them until the panel can come off.

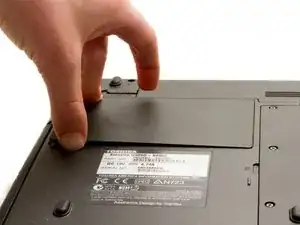

    • Carefully lift the panel using the thumb slot on the side closest to you while the battery is pointed out.

  2. AWgcndXlyd2ylFPW

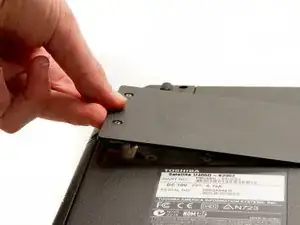

    • After lifting the cover up carefully, slide it to the left to be removed.

  3. jHapU62jITsREPL4
    jHapU62jITsREPL4
    tLWokn5LdbCdkhcf
    cbWAjUIW6PRToTgL

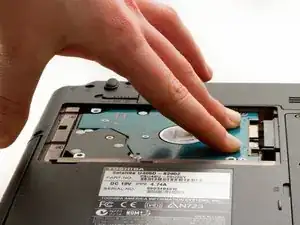

    • Place two fingers gently on the hard drive.

    • Slide it back to the left.

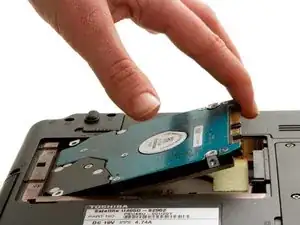

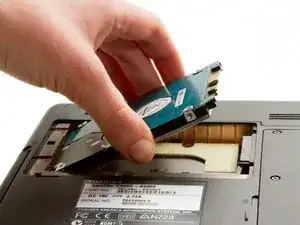

    • Lift the drive by the two corner tabs making sure not to touch the metel

    • Do not press down too hard on the top of the drive, or you will damage it. Only use enough pressure to be able to remove it from the SATA connection.

Abschluss

To reassemble your device, follow these instructions in reverse order.
