Einleitung
Your hard drive stores and retrieves all memory on your laptop. In this guide you will learn how to remove the hard drive of your Toshiba Satellite U925T-S2120. If your hard drive is broken, you may need to replace it. Prior to beginning this guide you should have all required tools that are listed.
-
-

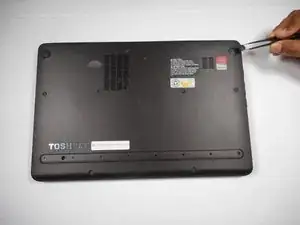

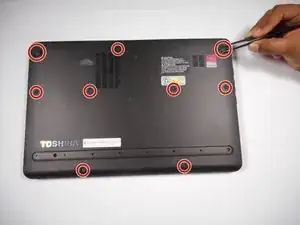

Use tweezers to pinch and pull out and remove the nine rubber gripper pads on the back panel of the laptop. Set aside.
-
-
-

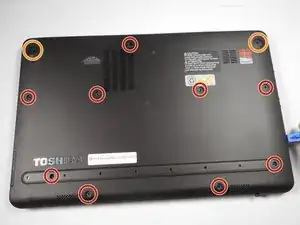

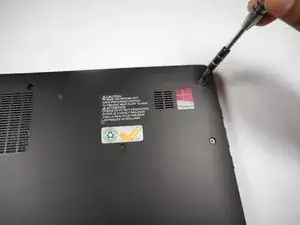

Unscrew nine 5.8 mm screws using a PH1 screwdriver and turning clockwise.
-

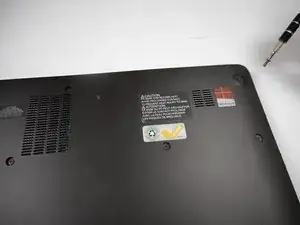

Use the same screwdriver to remove the two 6.8 mm screws.
-
-
-

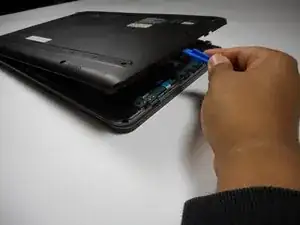

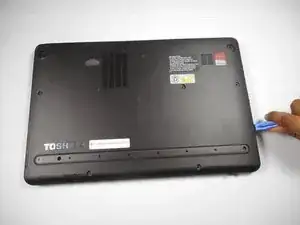

Remove the back panel open by inserting the plastic opening tool into the seam of the laptop and pushing downwards. Repeat the motion around the perimeter of the device.
-
-
-

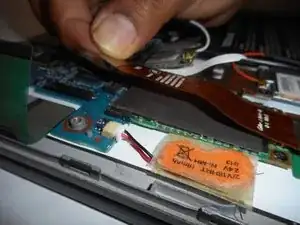

Hold back the orange plastic strip with one hand
-
Use a PH1 screwdriver to unscrew the two 3.4 mm screws by turning clockwise.
-
-
-
Lift the silver flap away from the hard drive.
-

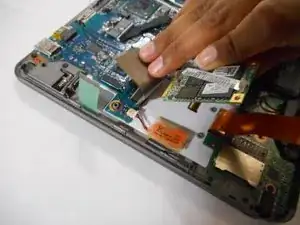

Gently pinch and lift out the hard drive with your thumb and pointer finger.
-
To reassemble your device, follow these instructions in reverse order.
