Toshiba Satellite c650d Fan Replacement

Geschrieben von: Brenna Callahan

Kommentare: 0

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

25 - 40 Minuten

Einleitung

If your laptop gets hot and noisy when it is turned on, there may be a problem with the fan. This guide contains instructions for both checking the connection of, and replacing the fan of a Toshiba Satellite C650D computer.

Werkzeuge

Ersatzteile

Toshiba Satellite C650D Replacement Fan

Schritt 1

Unplug the laptop and turn it off.
Flip the laptop upside down.
Locate the battery on the underside of the laptop.

Schritt 2

Push the two latches away from the battery.

Schritt 3

Slide the battery away from the laptop.
Locate the serial number on the battery to order a replacement.

Schritt 4

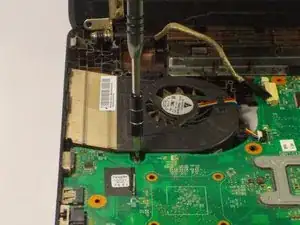

Remove the fourteen 6.0mm and two 2.0mm Philip's #0 screws connecting the keyboard to the back.
Make sure you keep track of all the screws.

Schritt 5

Flip the computer over.
Use a nylon spudger to lift the keyboard.
Go around the edge of the keyboard and lift until the keyboard separates from the back.
Only lift the keyboard a little at a time, otherwise you risk damaging the plastic.
