Toshiba Satellite c650d Hard Drive Replacement

Geschrieben von: Brenna Callahan
  • Kommentare: 0
Toshiba Satellite c650d Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

After powering the computer up, if it appears that your profile has been deleted or you get messages about the system detecting a ‘critical error’, then there may be a problem with the hard drive. Following the instructions in this guide will allow you to remedy this problem by replacing the hard drive.

  1. HIhdhvfNQrTUsaY3

    • Unplug the laptop and turn it off.

    • Flip the laptop upside down.

    • Locate the battery on the underside of the laptop.

  2. hwNfJHT4nMsnJ2Lb

    • Push the two latches away from the battery.

  3. 5SID2M5VINCAtyNB
    5SID2M5VINCAtyNB
    VKHVXBuyOvQL4BYr

    • Slide the battery away from the laptop.

    • Locate the serial number on the battery to order a replacement.

  4. uki3sJIBIwsSeQfB
    uki3sJIBIwsSeQfB

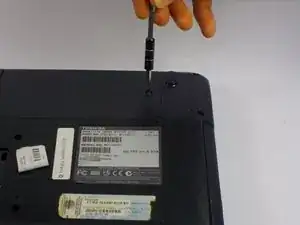

    LTWSoIZQm4CGEwJu

    • Remove the one 5.0mm Philips #0 screw that holds down the panel covering the hard drive.

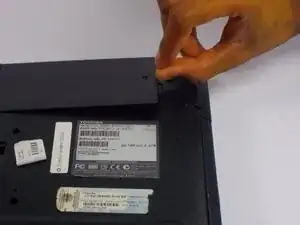

  5. ULnD4bVaNNwoCZHK

    • Pull off the panel.

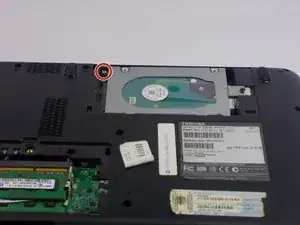

  6. WnTTquhh6UITONvs

    • Remove the one 3.0mm Philip's #0 screw holding the hard drive in place.

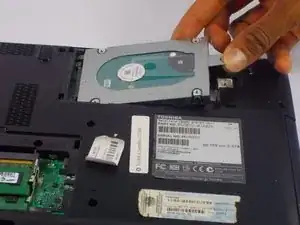

  7. djw66W1sPiZQsSV6

    • Slide the hard drive out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
