Toshiba Satellite e205 Motherboard Replacement

Geschrieben von: Tyler
  • Kommentare: 5
Toshiba Satellite e205 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

1 Stunde

Einleitung

  1. 1DwO5xY5SSFdylTB
    1DwO5xY5SSFdylTB
    mvvPN1HVsEaBMqUj

    • With the battery away from you, slide the locking clips out.

    • The left clip stays, the right clip is spring loaded.

    • Slide the battery away from you.

  2. FEuOtHYBglpKRD4a

    • Use a spudger to carefully pry up the keyboard screw cover.

  3. 6E4BuCdAJDSAcbel

    • Remove the two screws securing the keyboard to the chassis.

  4. mhqhgdsoInEeJ2lO

    • Carefully tilt the keyboard towards you and release the ribbon cables.

    • Use a spudger if needed to release the latch. The latch slides out.

    • The keyboard is now free and can be set aside.

  5. DkDwZQteGoaOXtag

    • Remove the five black screws

    • Remove the one silver screw

  6. I63KGAY1XegTHuSG

    • Flip the laptop over so the bottom is facing up.

    • Using a spudger, remove the seven rubber inserts.

    • The feet only go in one location on the bottom of the laptop, so save yourself some time and track where they go.

  7. KwZOqEVRLDOXiByM

    • Remove the six silver screws.

    • Remove the one black screw.

  8. 6lHVXWNZkG4DHhDO
    6lHVXWNZkG4DHhDO
    rU5P33cXTVtpLq6q

    • Stand the laptop up on end.

    • Remove the two rubber inserts from the back of the laptop. One insert is on each side of the laptop.

  9. RoQ1kUgNQUITjAID
    RoQ1kUgNQUITjAID
    QSFyiVIV1FO6j3wM

    • Remove the two screews.

  10. CiAELSCk6RtNZSkm

    • Carefully work a spudger in the crack at the back of the laptop and separate the small rubberized section from the bottom of the laptop.

  11. ghWpXRfTPLmInCYK

    • Remove the four screws.

    • Disconnect the black wireless antenna lead.

    Two outer are larger in diameter…

    mitchgwin -

  12. 2ae12dtTC6LJPygC

    • The bottom of the laptop is now ready to lift off.

    • Carefully work a spudger around the seam of the laptop separating the bottom from the rest of the laptop.

    • There is a data connection at the front of the laptop that needs to be disconnected.

    • Use a spuder to carefully disconnect the wire from the motherboard. Once this is free the bottom will come off.

    Another data connection at rear near battery…

    mitchgwin -

  13. bj6bygiCOrAVXMQY
    bj6bygiCOrAVXMQY
    5ZMGhWfcOWfNJquK

    • Locate the hard drive.

    • Remove the three screws.

    • Slide the hard drive out away from the motherboard connector.

    • Once the hard drive is disconnected it lifts out.

  14. jmRWONMYMJRMoU3S
    jmRWONMYMJRMoU3S
    oKDK4N6M5iLtgUPB

    • Locate the wireless card.

    • Remove the white antenna lead.

    • Remove the single screw.

    • Lift the card up from the edge with the screw, and pull out.

  15. plIwGCZoZAaSVhEL
    plIwGCZoZAaSVhEL

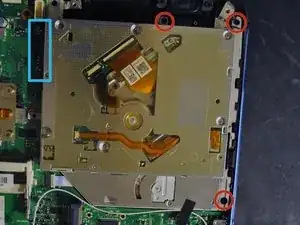

    omhuOY6DRWneyFdj

    • Locate optical drive

    • Remove the three screws securing the optical drive.

    • Slide the optical drive away from the motherboard, and carefully lift up.

  16. SlGMRMr4tBaEgOjN

    • Carefully flip the laptop rightside up and open the lid.

    • Disconnect the cables from the motherboard.

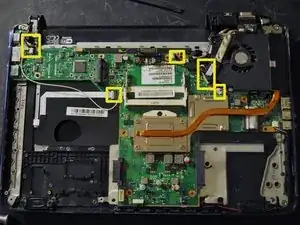

  17. xLSQlWi6Tw4P6NqM
    xLSQlWi6Tw4P6NqM

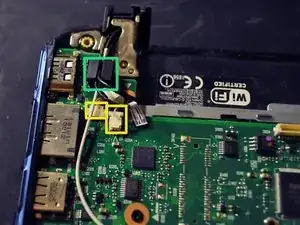

    JJAanLDSAoNxegFf

    • Close the laptop lid, and flip back over so you see the motherboard.

    • Disconnect all cables from the motherboard.

    • This wire holder is stuck on with a little glue and should lift right off.

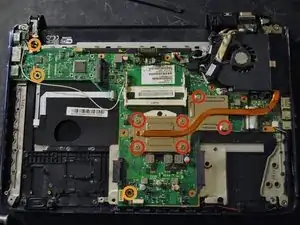

  18. iDD6uKlKdYshHh6R

    • Remove the heatsink screws. And lift up the heatsink.

    • The screws remain attached to the heatsink.

    • Remove the three screws holding the motherboard to the chasis.

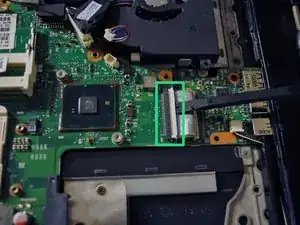

  19. PwPhDYjsWNgIQmOR

    • Lift up on ribbon cable latch.

    • Gently disconnect ribbon cable from motherboard.

    • The motherboard should lift out.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Tyler

Mitglied seit: 20/06/12

4854 Reputation

3 Kommentare

This guide could really use an explanation of how to disconnect the different types of cables from the motherboard. In particular, the descriptions for steps 16 and 17 are completely inadequate to me.

gitm -

Also, to replace the motherboard you must remove the CPU and RAM from the motherboard, so they can be connected to the new one. This guide does not cover that.

gitm -

Anther important omission is the data connection to the card reader, which needs to be disconnected in Step 11 (this is one of two connections between the motherboard and the bottom of the case).

gitm -
