Einleitung

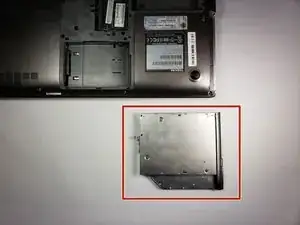

If you need to replace the disk drive, follow this guide. The disk drive can be accessed from the bottom of the computer. To replace this part, you will need a Phillips 0 screw driver and a plastic opening tool.
Werkzeuge
Ersatzteile
-
-

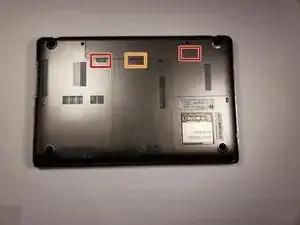

Remove the battery by sliding the tabs to the left.
-

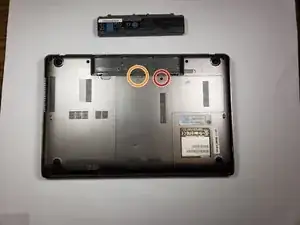

Use the spudger to lift the battery out.
-
-
-

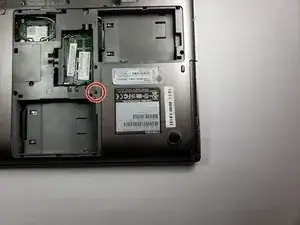

Use the Phillips head screw driver to remove the screw holding the back plate on.
-
Use the spudger to remove the back plate.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
