Toshiba Satellite p875 s7200 Hard Drive Replacement

Geschrieben von: Danny Amado
  • Kommentare: 1
Toshiba Satellite p875 s7200 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

If you need to replace the hard drive, follow this guide. The hard drive is located underneath the computer. To replace this part, you will need a Phillips 00 screw driver and a plastic prying tool. This process should not require any excessive force.

  1. eA2EmoZFRkC5CM2B
    eA2EmoZFRkC5CM2B
    gO1IPqAINSiEawDd

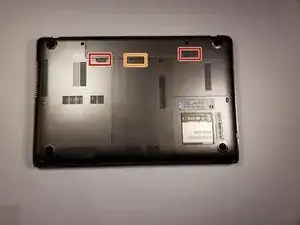

    • Remove the battery by sliding the tabs to the left.

    • Use the spudger to lift the battery out.

  2. Nl3dRlSaWo626VZI

    • Use the Phillips head screw driver to remove the screw holding the back plate on.

    • Use the spudger to remove the back plate.

  3. 2mmXUaHRN3rW4nJG

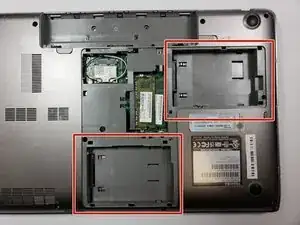

    • Remove the two hard drives.

    • Take note of the orientation of the hard drive on the terminals for reassembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
