Toshiba TECRA R940 Hard Drive Replacement

Geschrieben von: Holly Strauch
  • Kommentare: 1
Toshiba TECRA R940 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

The hard drive is one of the most simple part replacements to perform on this computer. A screwdriver and prying tool are the only tools needed.

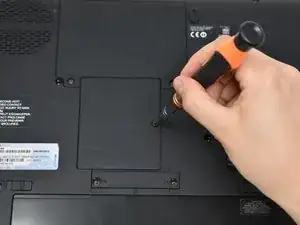

  1. HFFjB6pksAJtOYIe
    HFFjB6pksAJtOYIe

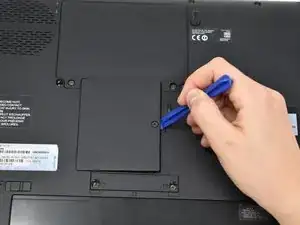

    3wtLDFLNcjSbaQdR

    • Loosen the screw holding the back panel for RAM in place using a Phillips #0 screwdriver. Once loosened, lift the panel up and set it aside.

    • The screw holding the panel in place should not come completely out. If it does, do not be alarmed as it will still screw back in.

  2. 1PnMtpbCQlGQuV3L
    1PnMtpbCQlGQuV3L
    igPmQWWRveVipwhu

    • Remove the 11mm screw from the right side of the hard drive access panel using a Phillips #0 screwdriver.

    • Remove the 3.5 mm screw from the left side of the access panel using a Phillips #0 screwdriver.

    • Use a plastic opening tool to pry off the access panel from the bottom.

  3. snbDlS4jbcydEbMN
    snbDlS4jbcydEbMN

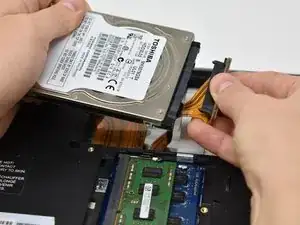

    CJfZmbdDEBJvK33w

    • Gently lift the hard drive from the left side and disconnect the SATA connector from the right side. Completely remove the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Holly Strauch

Mitglied seit: 23/09/18

409 Reputation

Ein Kommentar

I cannot lift up the “back cover” (step 1). I’ve twirled the screw left for minutes and tried to lift up the panel using a small flathead screwdriver and it will not lift up. HELP!

Remy Secor -
